3-Channel Bluetooth Audio Mixer – Wireless Streaming, 18V Phantom Power

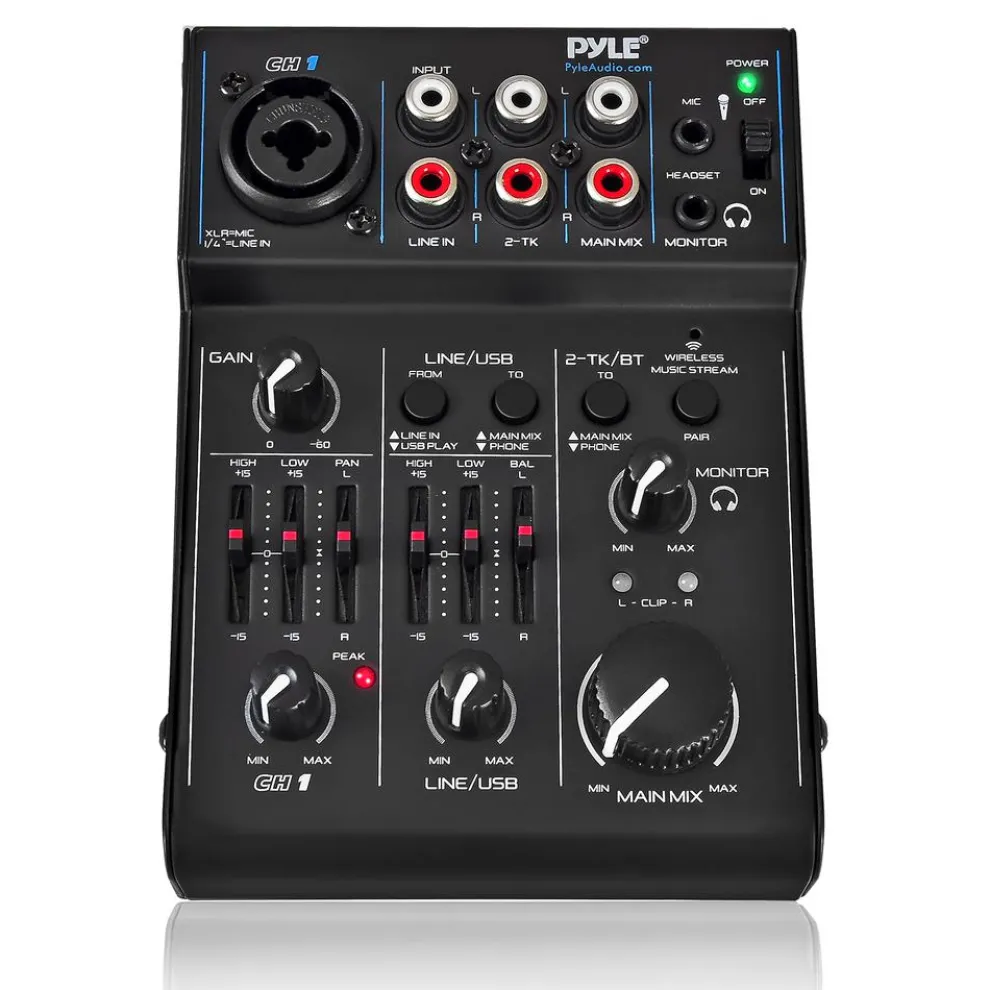

The Pyle PAD30MXUBT 3-Channel Bluetooth Audio Interface DJ Mixer is like a portable recording studio. It’s perfect for computer-based audio editing, while adding fine-tune adjustments to your sound. Connect to your computer via the USB port and this audio interface mixer has the ability to function as the sound card. System features include Bluetooth wireless audio connectivity, +18V phantom power supply, XLR microphone input, 3.5mm (1/8”) microphone input, 3.5mm (1/8”) headphone jack, RCA (L/R) stereo input & output connectors, 2-TK RCA (L/R) Input Connectors, audio signal clip LED indicator lights, input selection control buttons. Adjust each input’s gain, master gain and monitor levels using the rotary faders. System includes USB wall adapter power supply & connection cable.

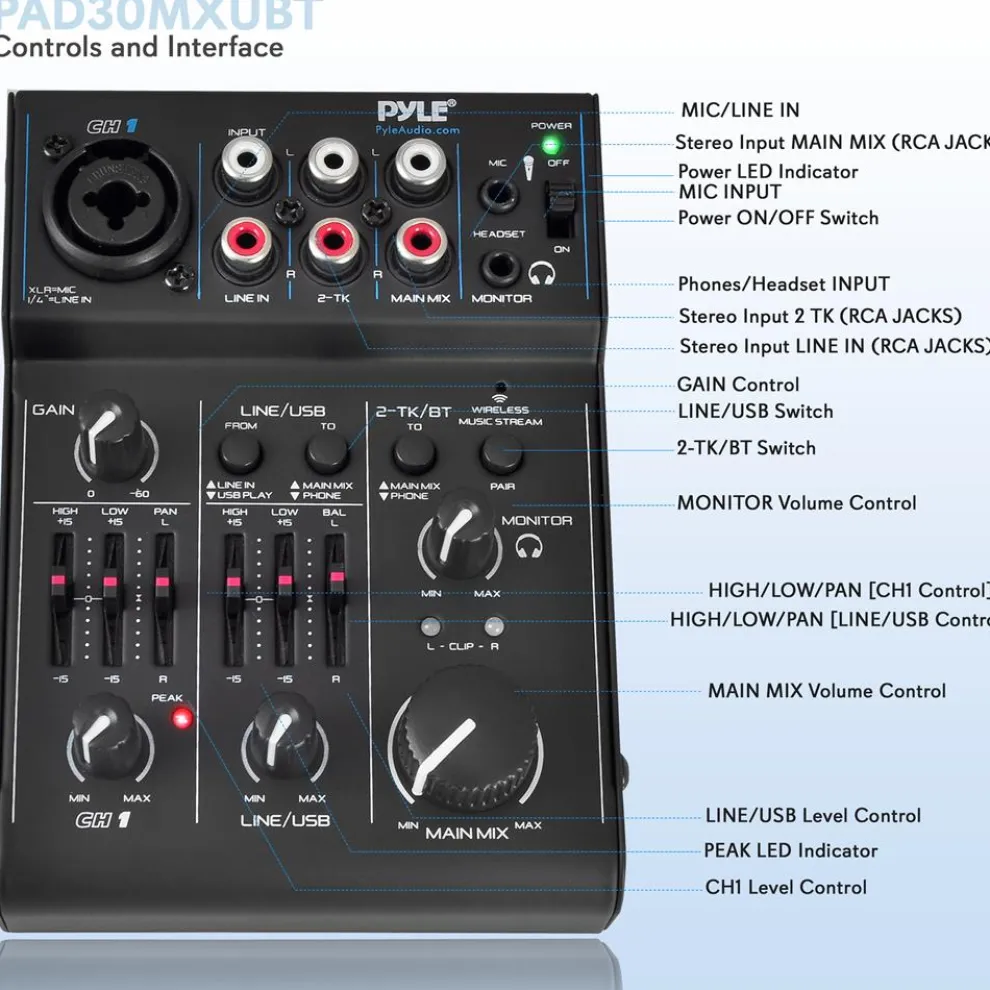

Features:

• Bluetooth Wireless Streaming Ability

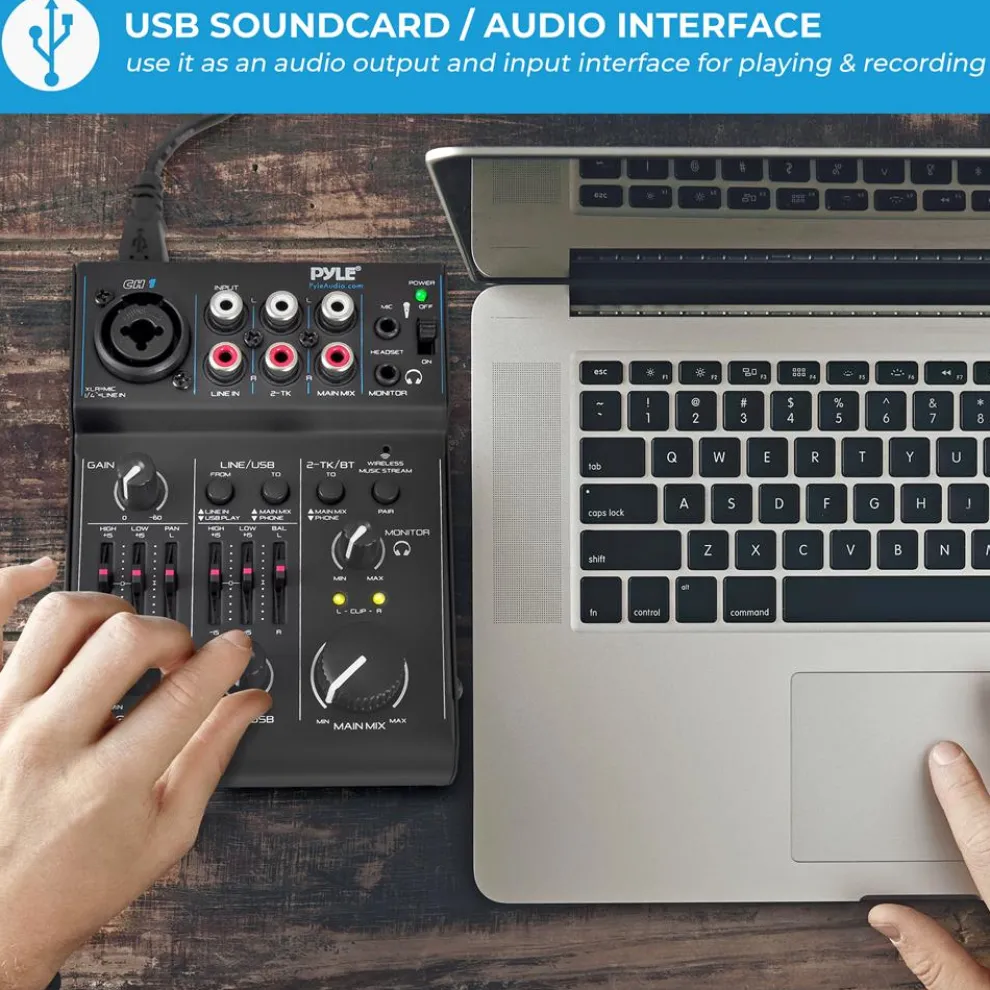

• USB Soundcard / Audio Interface

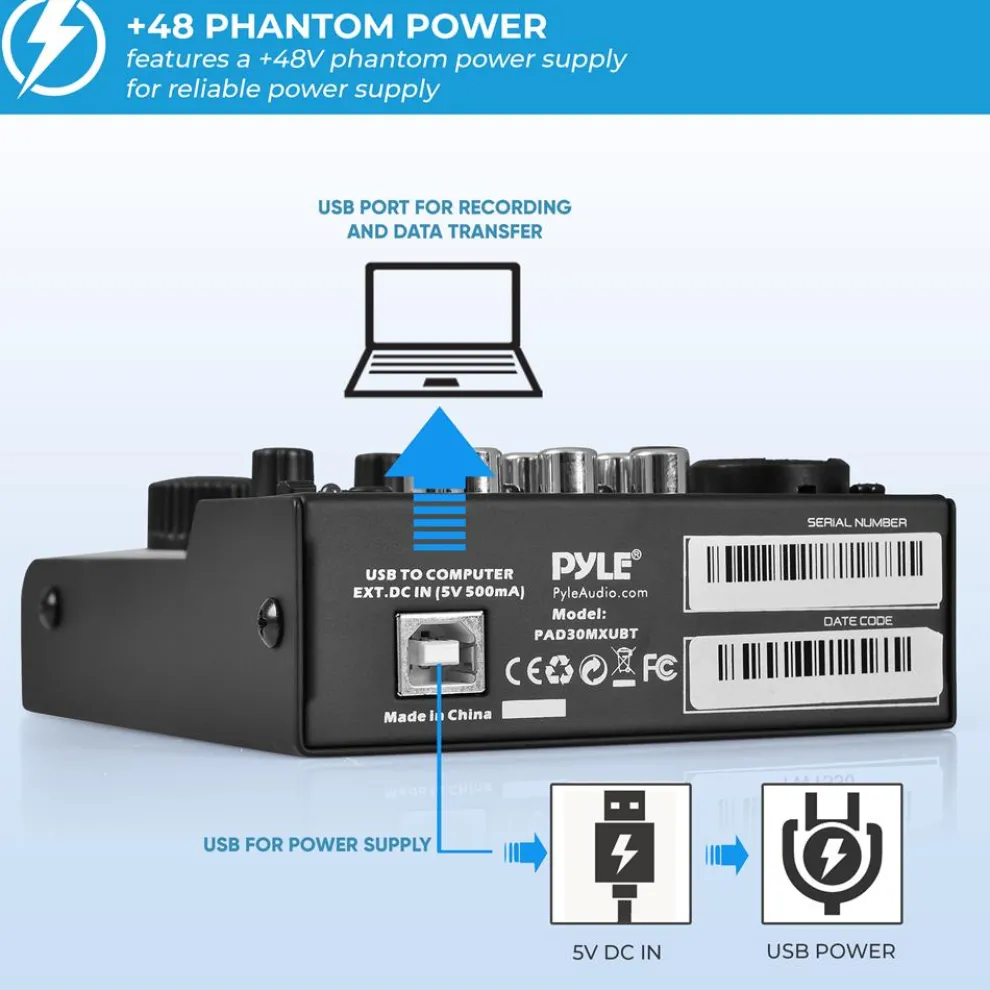

• +18V Phantom Power
• XLR Microphone Input Connector
• 3.5mm (1/8”) Microphone Jack + 3.5mm (1/8”) Headphone Jack
• RCA (L/R) Stereo Input Connectors
• 2-TK RCA (L/R) Input Connectors
• RCA (L/R) Stereo Output Connectors
• USB Port: Connect to Mac / PC
• Audio Signal CLIP + LED Indicator Lights
• Input Selection / Control Buttons
• Independent Channel + MASTER Volume Controls
• Independent Channel Balance/High + Low Frequency Adjustment
• Includes USB Wall Adapter Power Supply & Connection Cable

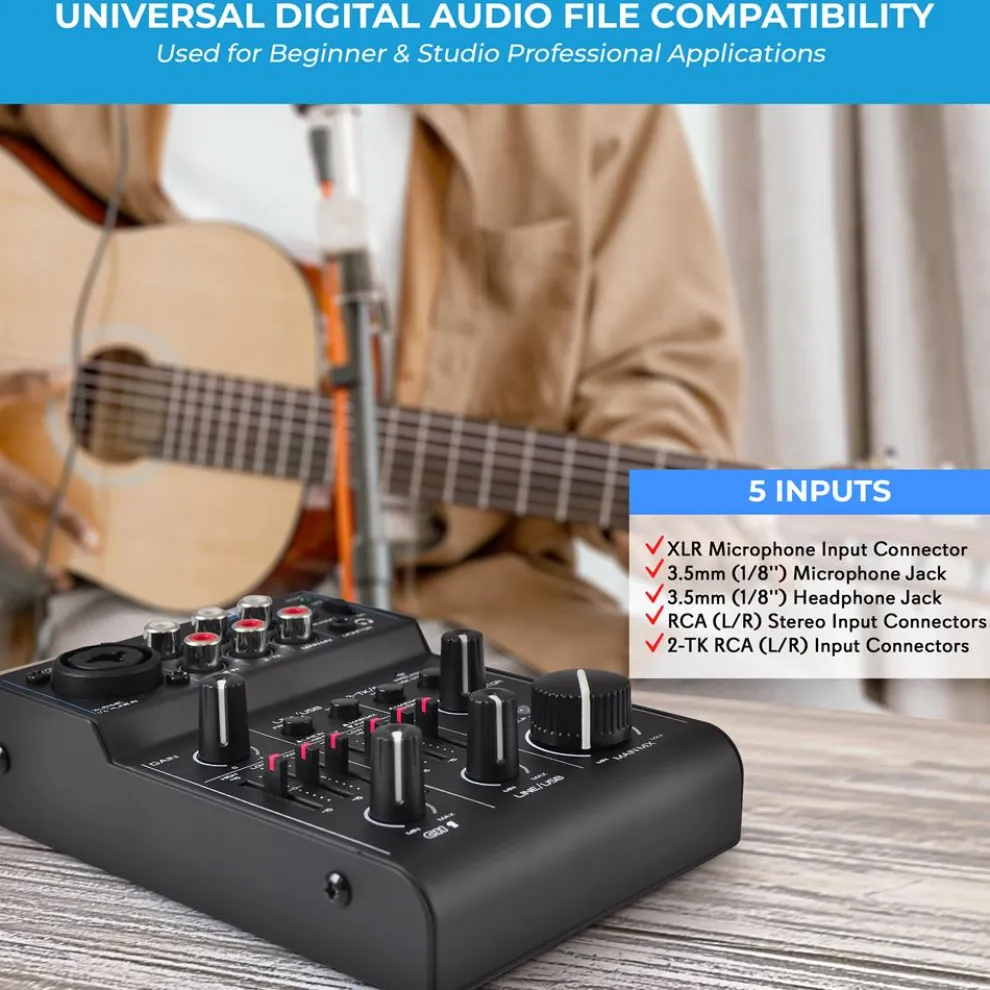

• Universal Digital Audio File Compatibility
• Used for Beginner & Studio Professional Applications
• Power Supply: 5V, 500mA

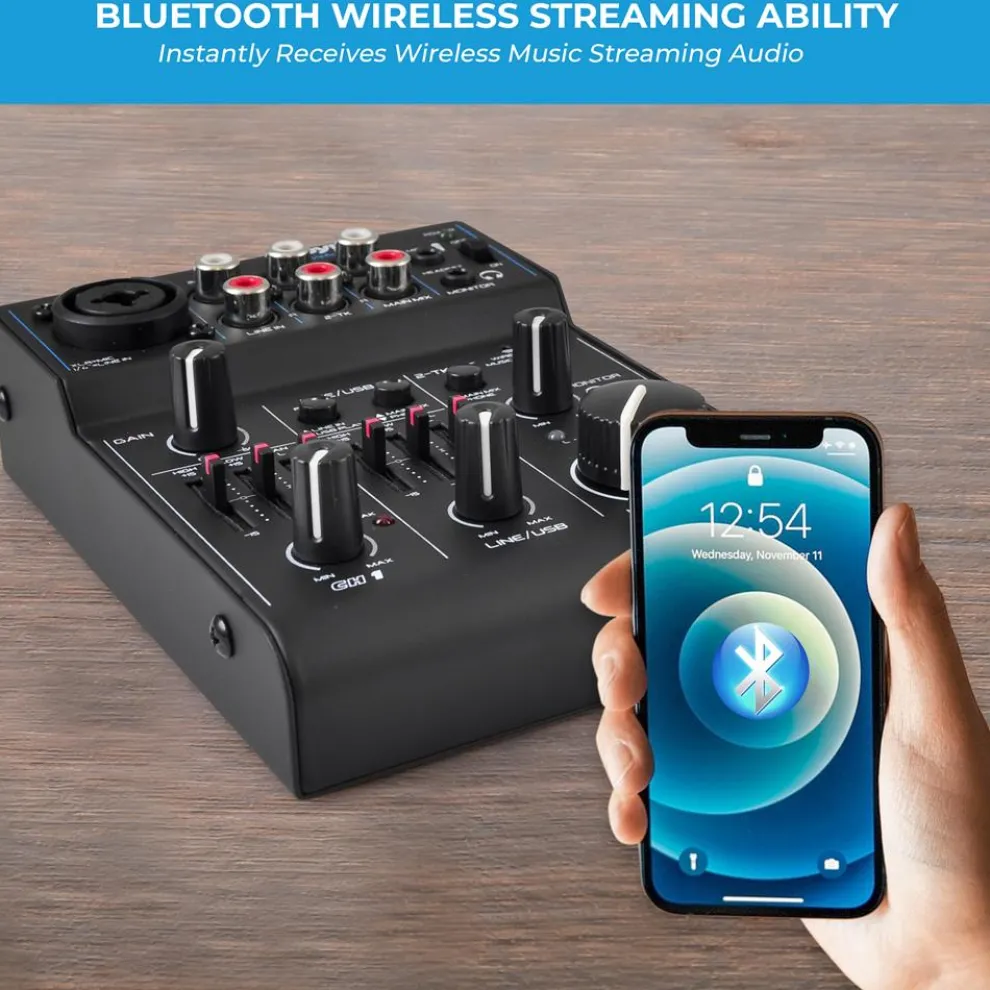

Bluetooth Connectivity:

• Instantly Receives Wireless Music Streaming Audio
• Works with All of Your Favorite Devices
• (iPhone, Android, Smartphones, iPad, Tablet, MP3 Player, etc.)
• Bluetooth Version: v3.0
• Bluetooth Network Name: ‘Pyle Audio’
• Bluetooth Wireless Range: 50′ Feet

Technical Specs:

• S/N Ratio: 81dB (A Weighted)
• T.H.D.: <0.05%
• Frequency Range: 20Hz – 25kHz
• Output Level: 5.8V Max
• 2-TK in: 300mV / 22KΩ
• Mic: 1mV/1.7KΩ (Gain Max)
• Line Ch1: 3mV/12KΩ (Gain Max)
• Line Ch2, Ch3: 150mV/22KΩ
• Equalizer Bass Range: +/-15dB/80Hz
• Headphone Impedance: >16Ω
• Power Supply: AC 100/240V

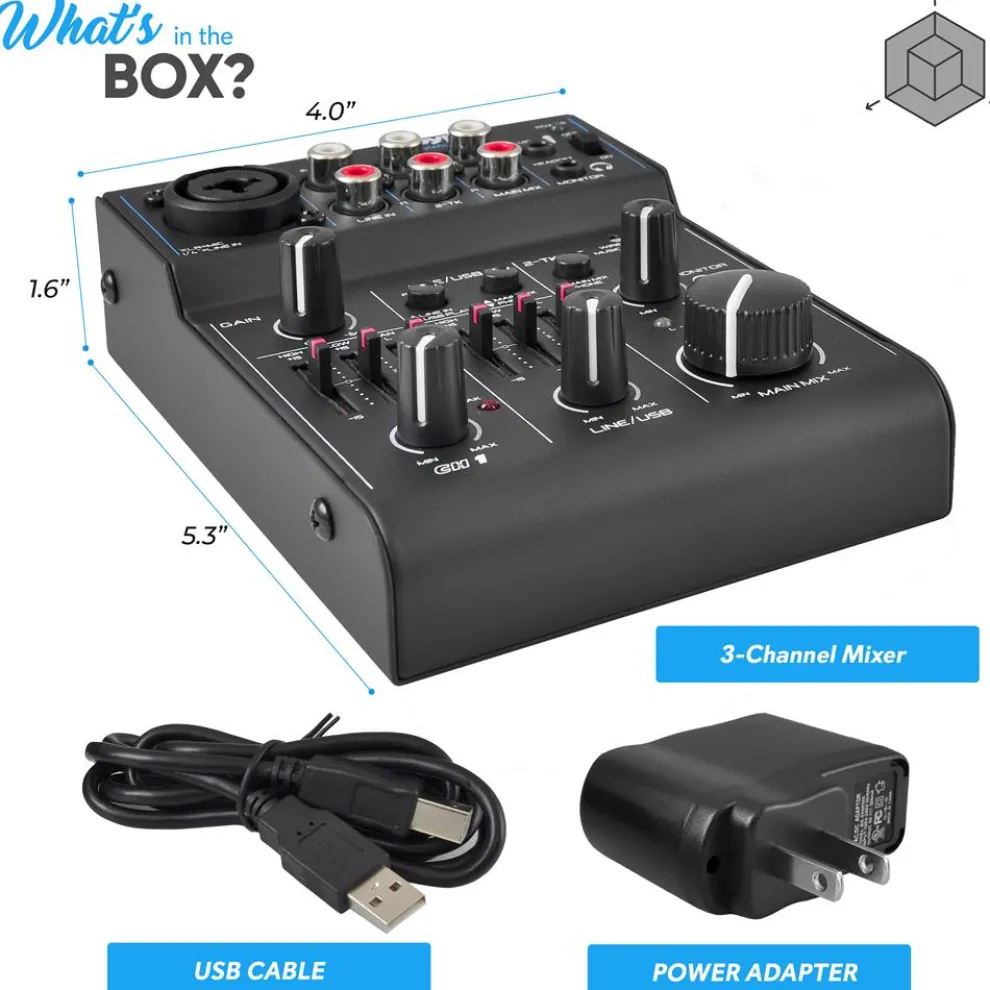

• Dimensions (L x W x H): 4.0” x 5.3” x 1.6”
