8-Channel Bluetooth Studio Mixer – USB, DSP, Phantom Power, DJ/Studio Use

• DJ & Studio Console Mixer System – Multi 8-Channel Audio Source Mixing – Built-in Bluetooth Wireless Receiver – FX (Analog Effects) & 16 Bit DSP processor – Direct-to-Computer Connect & Sound Record Ability
• LCD Digital Display & Front Panel Control Center – Rotary Adjustment Knobs & LED Indicator Lights – MP3 Digital Audio File Compatibility – USB Interface: MP3 Flash Drive Reader/Computer Connection – Connect & Stream Audio from External Devices
• (2) 1/4’’ (L/R) MAIN Outputs – (4) XLR/14’’ Combo Audio LINE/Microphone Inputs – (2) Pair RCA (L/R) Inputs – (2) Pair 1/4’’ Mono + Stereo Inputs – 1/4’’ Send + Return Inputs – 1/4’’ Headphone Jack – Stereo Level Fader/Slider
• Output Signal Level Indication – BUS Audio Control – PAD Channel Source Input Switch – Independent Channel Input Audio Configuration – Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment – +48V Phantom Power Control.
• Power ON/OFF Switch – Used for Professional Studio Applications & On-Stage Performances What’s in the Box: – Bluetooth Studio Mixer – Power Adapter Cable, 4-Pin Wireless Bluetooth Connectivity.

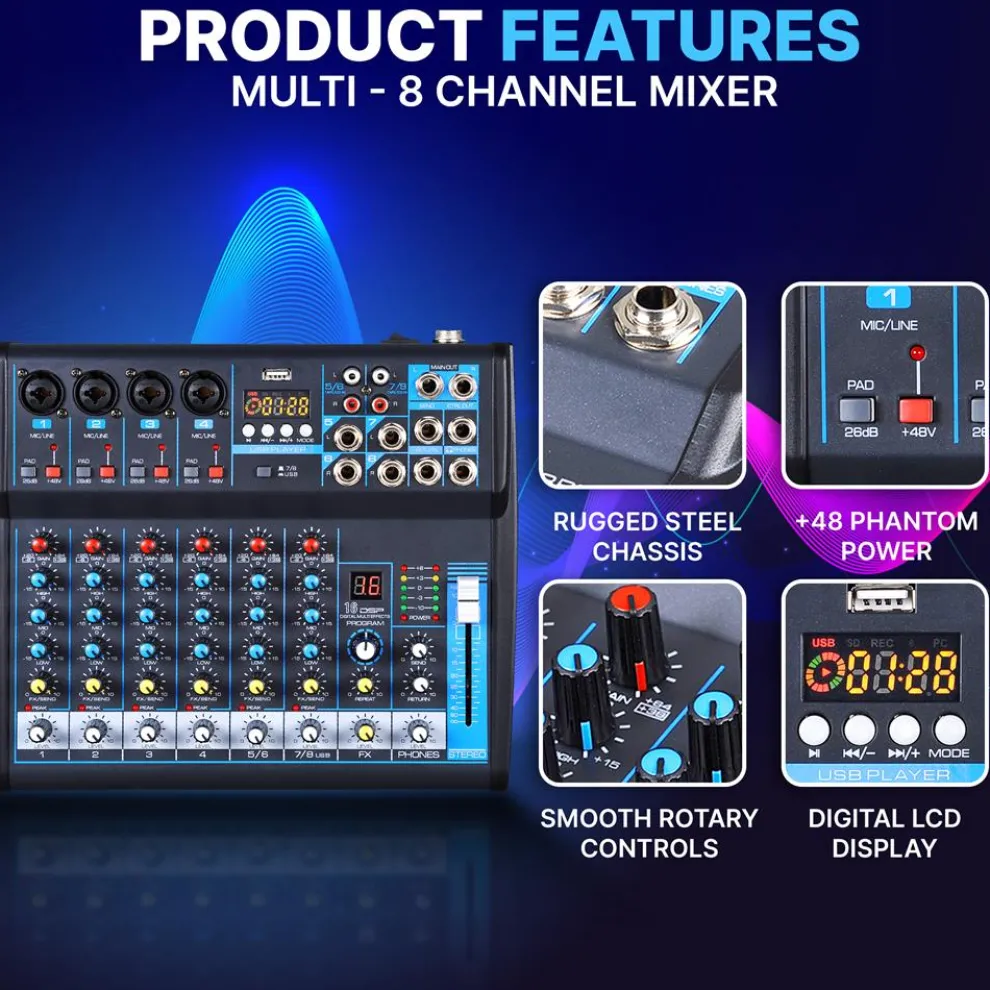

Features:

• DJ & Studio Console Mixer System
• Multi 8-Channel Audio Source Mixing
• Built-in Bluetooth Wireless Receiver
• FX (Analog Effects) & 16 Bit DSP processor

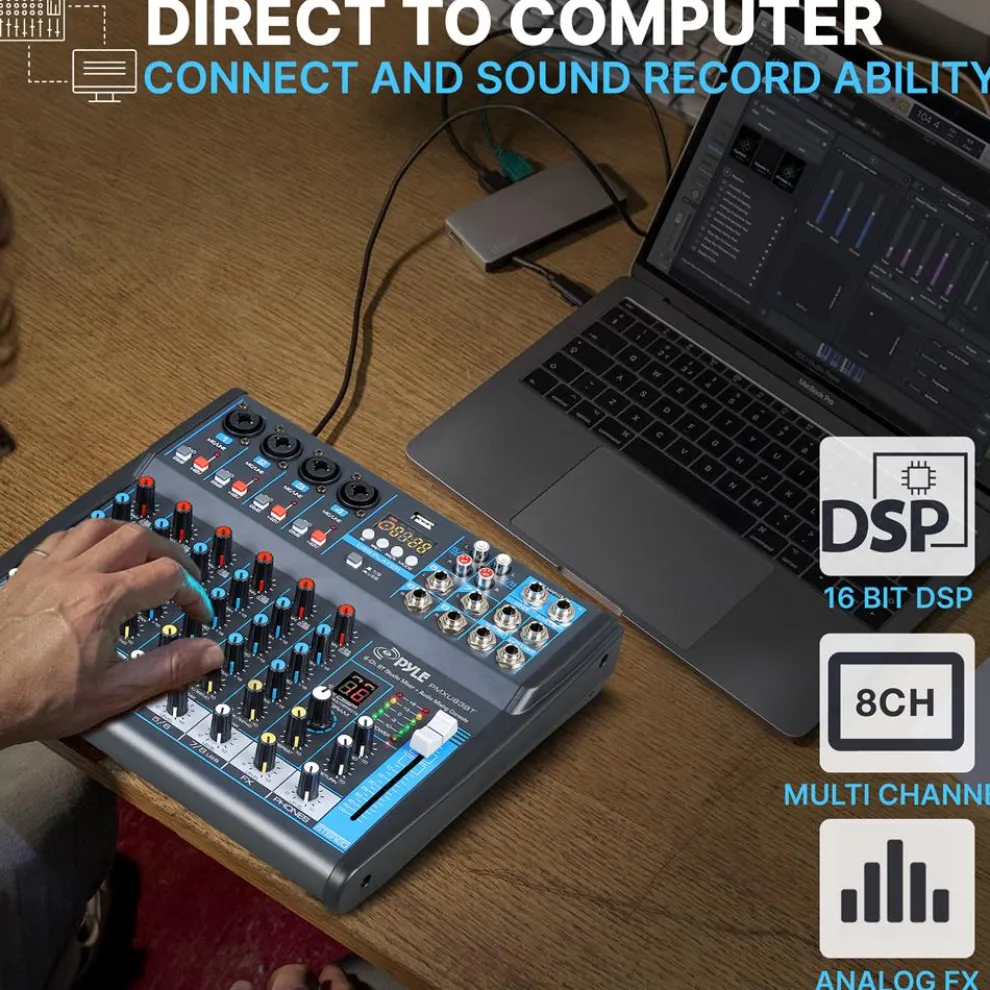

• Direct-to-Computer Connect & Sound Record Ability
• LCD Digital Display & Front Panel Control Center
• Rotary Adjustment Knobs & LED Indicator Lights
• MP3 Digital Audio File Compatibility
• USB Interface: MP3 Flash Drive Reader/Computer Connection

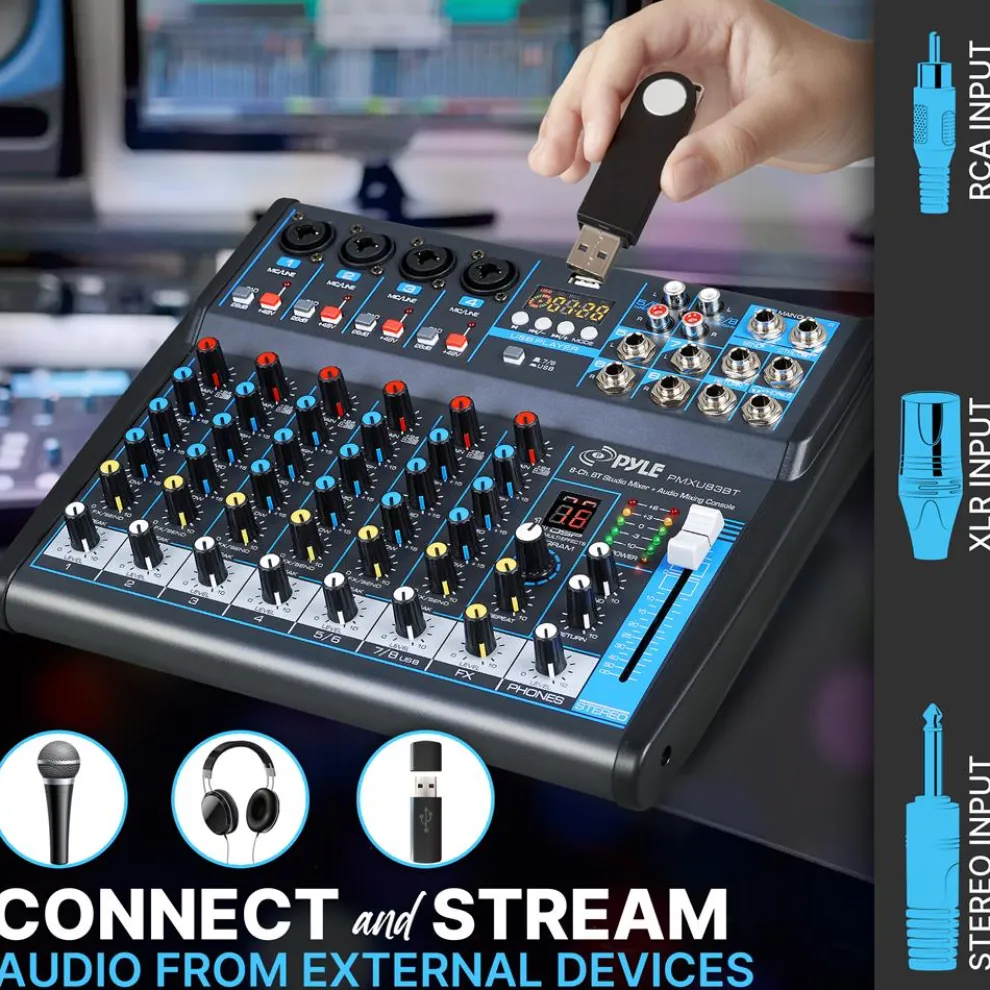

• Connect & Stream Audio from External Devices
• (2) 1/4’’ (L/R) MAIN Outputs
• (4) XLR/14’’ Combo Audio LINE/Microphone Inputs
• (2) Pair RCA (L/R) Inputs
• (2) Pair 1/4’’ Mono + Stereo Inputs
• 1/4’’ Send + Return Inputs
• 1/4’’ Headphone Jack
• Stereo Level Fader/Slider
• Output Signal Level Indication
• BUS Audio Control
• PAD Channel Source Input Switch
• Independent Channel Input Audio Configuration
• Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment
• +48V Phantom Power Control
• Power ON/OFF Switch
• Used for Professional Studio Applications & On-Stage Performances

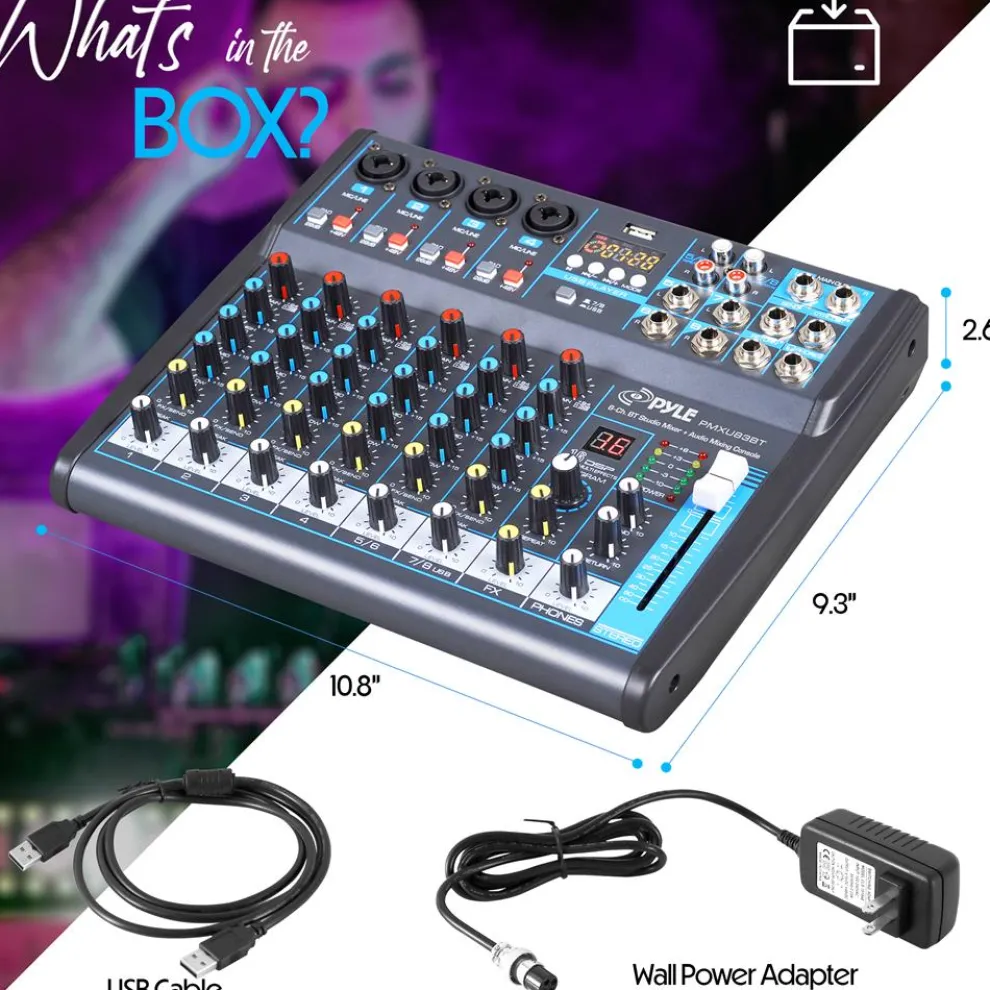

  What’s in the Box:

• Bluetooth Studio Mixer
• Power Adapter Cable, 4-Pin

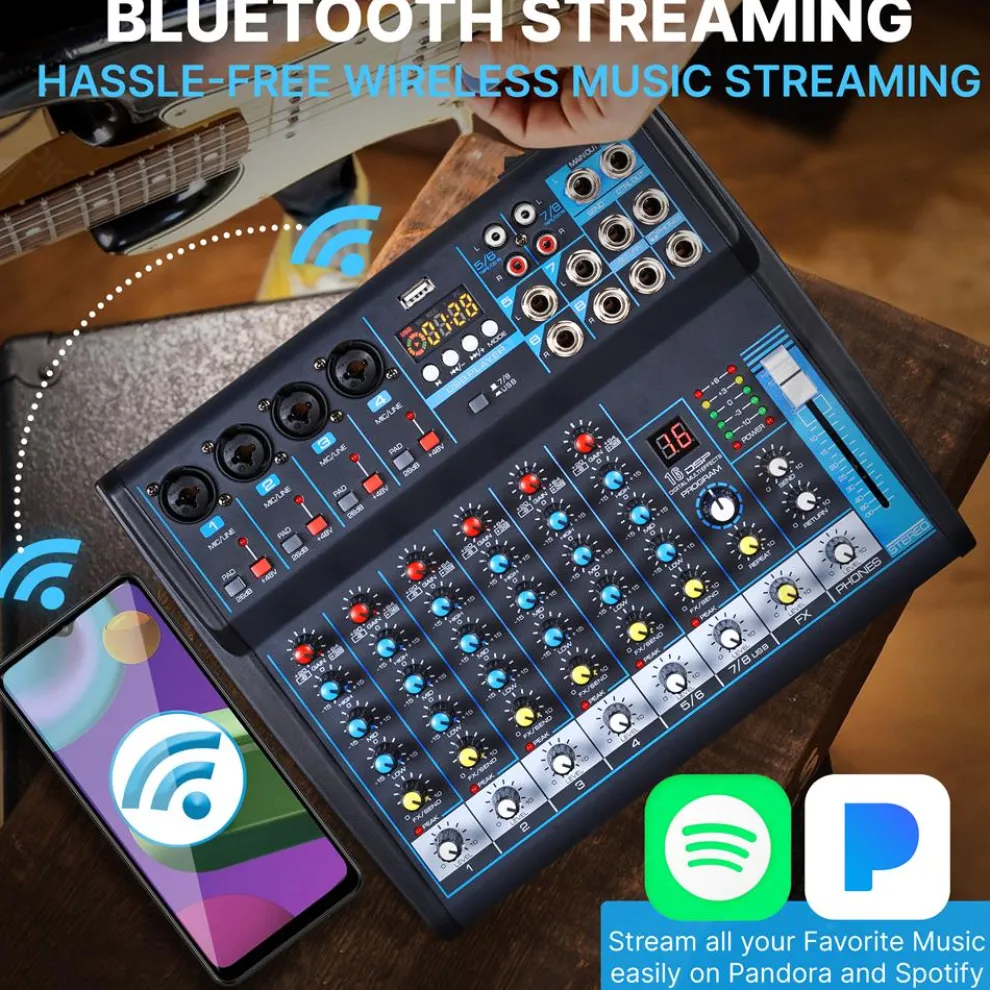

  Wireless Bluetooth Connectivity:

• Hassle-Free Audio Streaming Ability
• Works with All of Today’s Latest Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Network Name: ‘KT-08UP’
• Bluetooth Version: 4.0
• Wireless Range: 15’+ ft.

  Technical Specs:

• Input Mixer Channels: 8-Ch. (+ FX/Headphones)
• Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm
• Input Frequency Response: 20Hz-20kHz, +/-3dB
• Input Distortion: 0.03%, 1kHz/150mV Input
• Channel GAIN Adjustment: +20/+64 (-6/+38)
• HIGH Gain: +/-15 dB, 12kHz Frequency Shelving
• MID Gain: +/-15 dB, 2.5kHz Frequency Shelving
• LOW Gain: +/-15 dB, 80kHz Frequency Shelving
• HIGH/MID/LOW Adjustment: -15/+15dB
• Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)
• PAD Input Channel Adjustment: 26dB
• Peak CLIP Level: < 3dB
• Phantom Power Voltage: +48V
• Power Supply: 100/240V (+/-15V DC Power Adapter)
• Digital Audio File Compatibility File-Types: MP3, WAV
• Dimensions (L x W x H): 9.3’’ x 10.8’’ x 2.6’’
