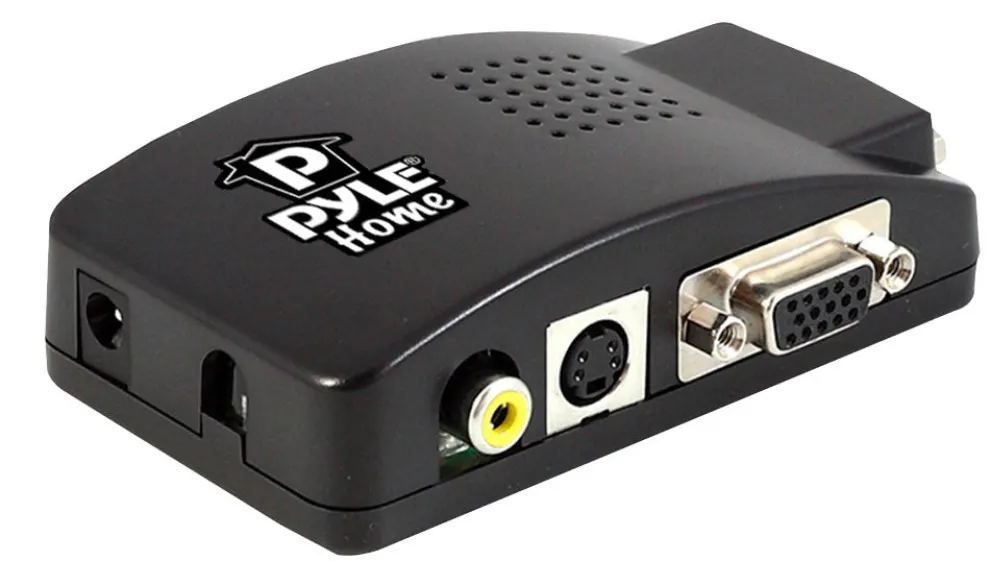

Composite & S-Video to VGA Converter, Vivid 3D Processing, Adjustable Settings

This video converter takes a composite video or S-video input and converts it to VGA widescreen for display on your monitor or VGA-compatible TV. It supports a variety of resolutions, including 800 x 600, 1024 x 768, 1440 x 900, 1600 x 900, and 16080 x 1050. Adjust the lightness, hue, contrast, saturation, color, etc. using the built-in settings. This unit up-scales your video for high-resolution, HD display. 3D video-processing technology makes the output rich in color, more vivid, and completely flicker-free. Simply plug everything in and turn it on. Includes an AC adaptor for use.

Composite Video Input Interface: RCA (The Model With BNC Interface Is: PBNC7503)

Inputs: 1 X Composite Video, 1 X S-Video And 1 X VGA;

Output: 1 X VGA;

Switch Between The 3 Inputs And Output One Of Them To VGA;

The VGA Input Is Pass Through To The VGA Output Directly Without Any Processing, Both PAL/NTSC Are Supported;

It Supports Wide-Screen 16:9 And 16:10 LCD As Well To Cater For Wider Applications;

Optional Resolution: 800 X 600/60HZ, 800 X 600/75HZ, 1024X768/60HZ, 1280 X 720/60HZ, 1440 X 900/60HZ, 1600 X 900/60HZ, 1680 X 1050/60HZ;

Lightness, Hue, Contrast, Saturation, Color, Etc. Are Adjustable And Settings Is Auto-Saved When Power Off

Composite Video And S-Video Are Up-Scaled To 1680 x 1050 And 3D Video-Processing Tech Is Applied To Make Output Picture Rich In Color, More Vivid And Free From Flicker

Product Dimension: 3.9”(L) X 2.4”(W) X 1”(H)

AC Adapter 110/220V Included
