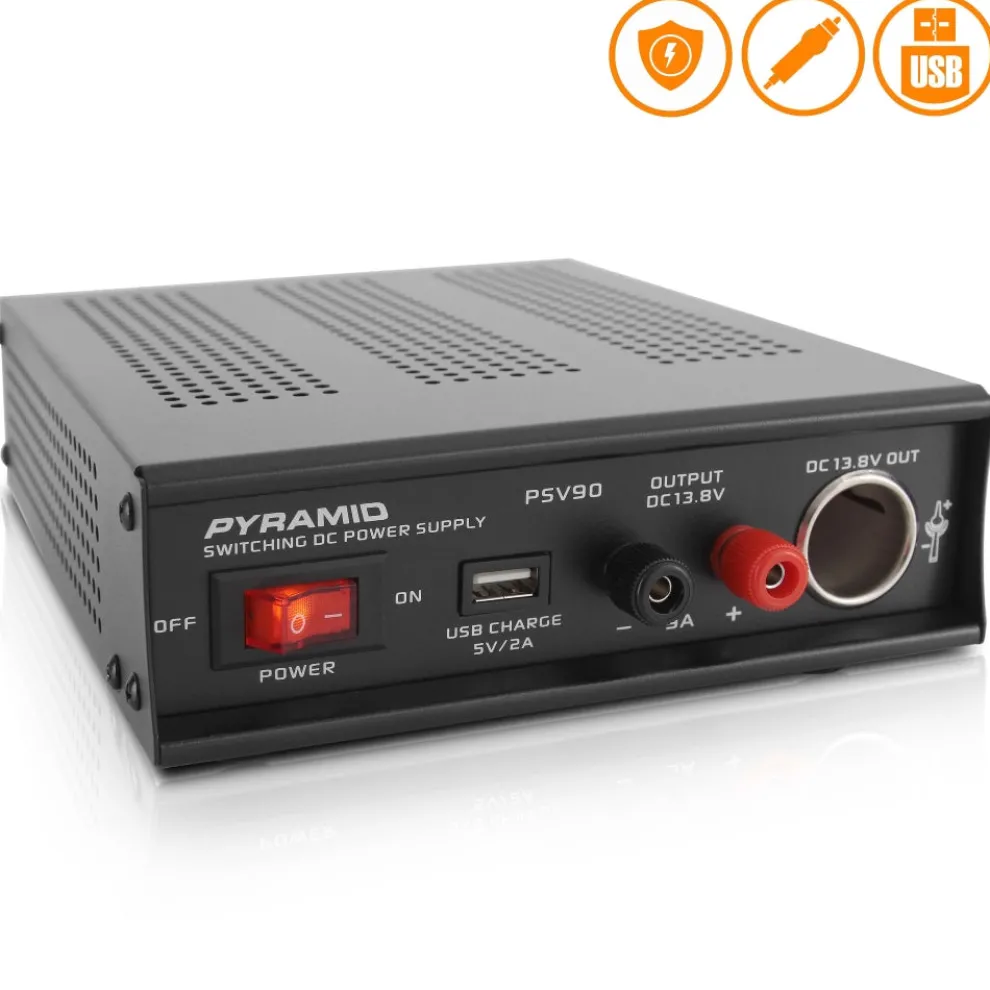

Hobbyist Bench Power Supply, 9 Amp

Features:

• Regulated Electrical Power Supply Design

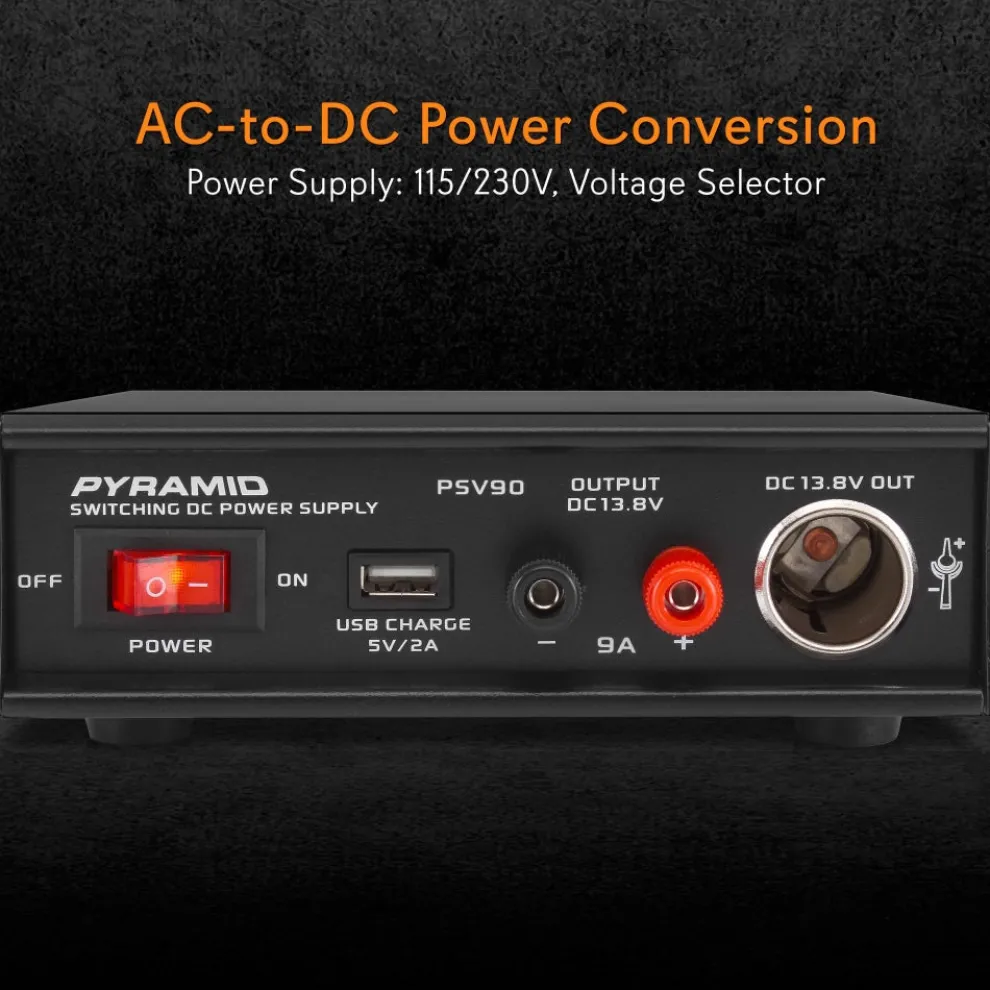

• AC-to-DC Power Conversion
• Provides Constant Source of DC Voltage

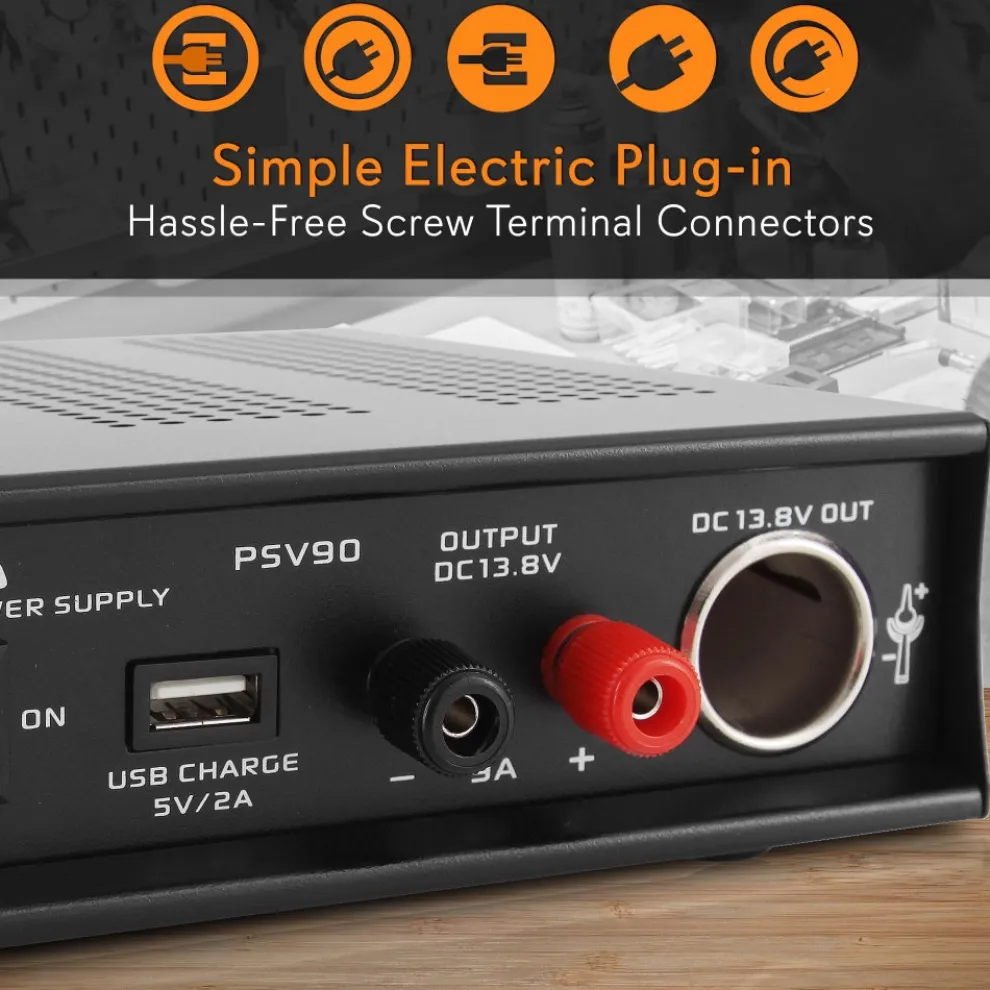

• Simple Electric Plug-in Operation
• Hassle-Free Screw Terminal Connectors

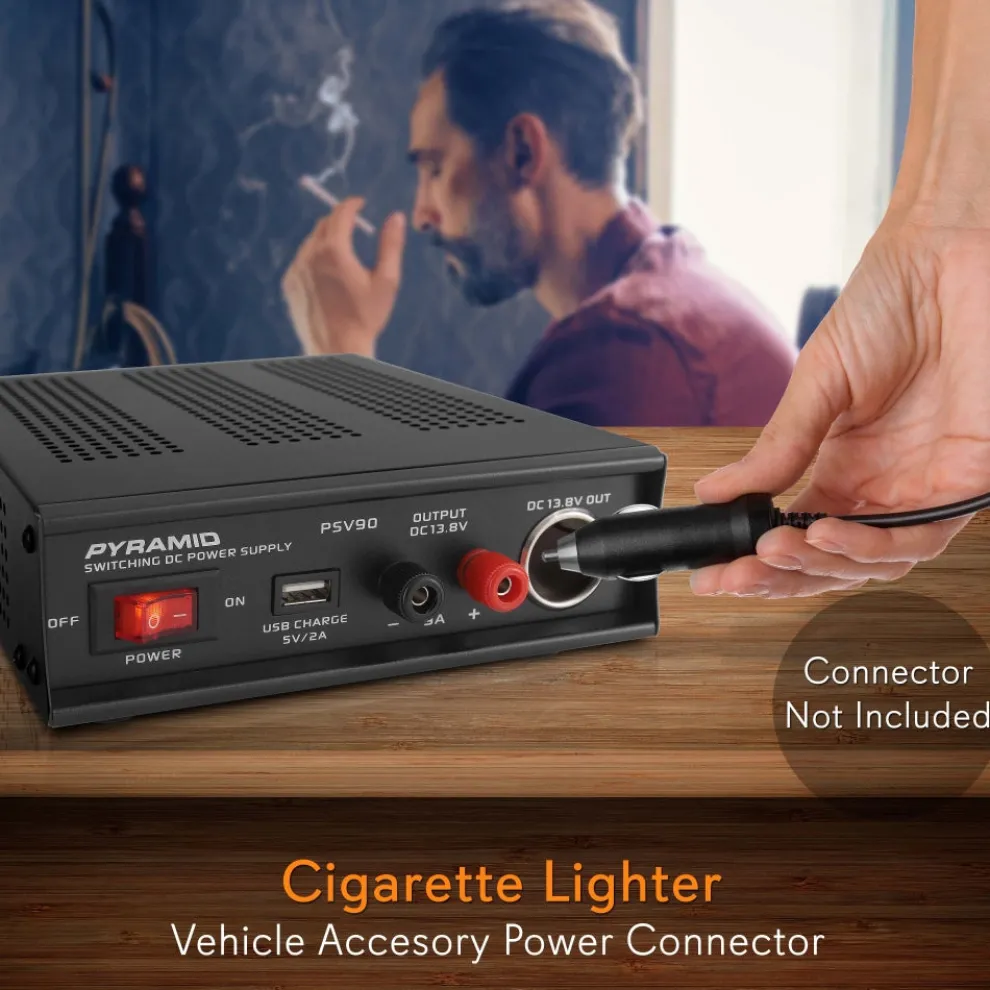

• Cigarette Lighter, Vehicle Accessory Power Connector

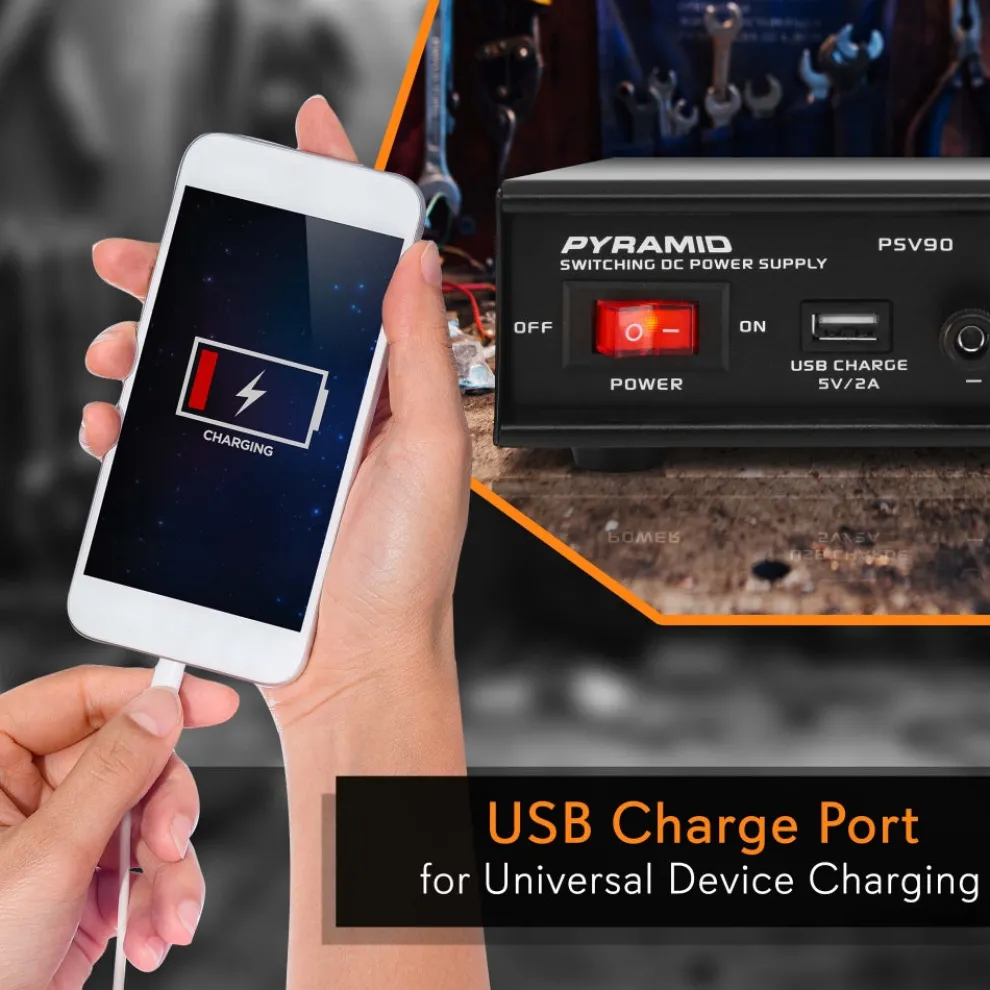

• USB Charge Port for Universal Device Charging
• Eliminates the Need of Battery or External Power Source
• Rugged & Durable Housing Construction
• LED Backlit ON / OFF Switch
• Compact, Home Desktop Workstation Power Supply Style

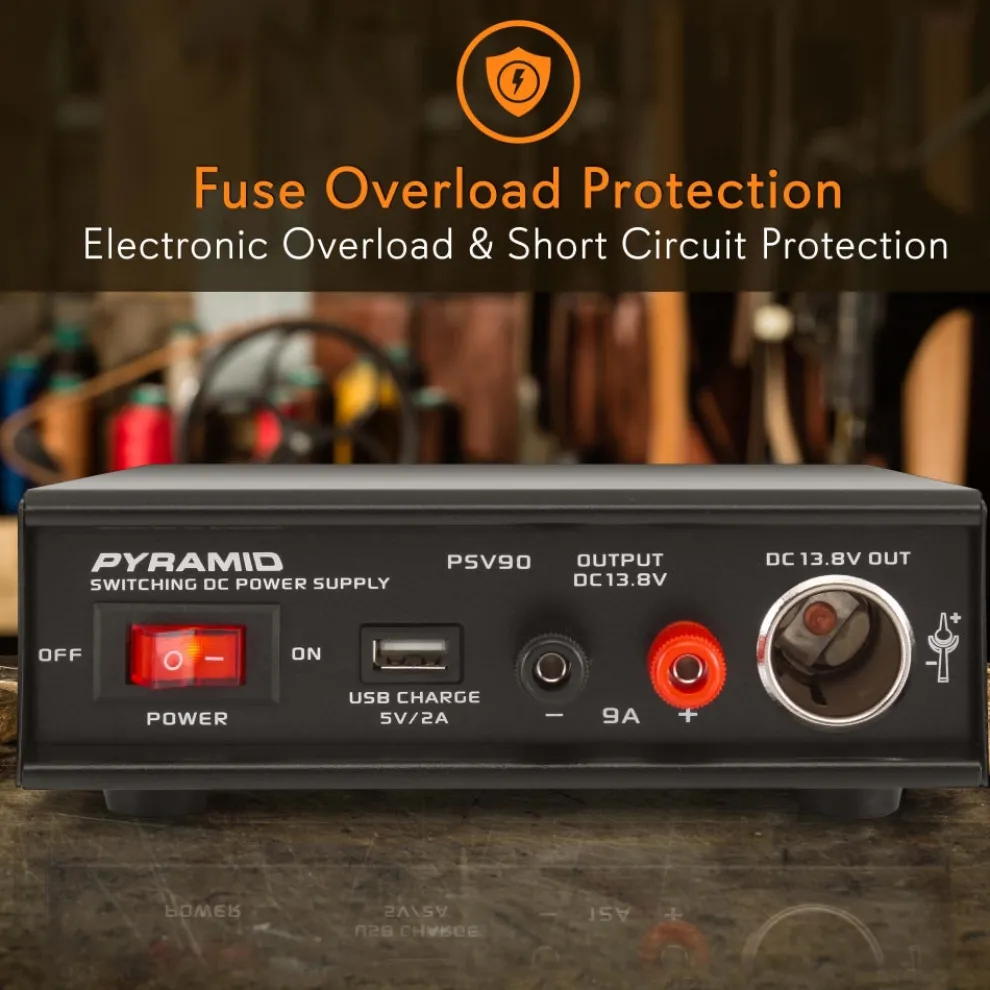

• Electronic Overload & Short Circuit Protection
• Used for Component & Device Equipment Testing, Operation & Performance
• Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement

Technical Specs:

• Continuous Power: 9 Amp, Max.
• Recommended Wire Cable Size: 18 (AWG) Gauge
• Load/Line Regulation: < +/-5%
• Output Voltage Accuracy: +/-0.02% Volts
• Ripple Output: 150mV
• Fuse Overload Protection: 2A/250V
• USB Power: 5V/2A
• Power Output: 13.8V DC
• Power Supply: 115/230V, Voltage Selector

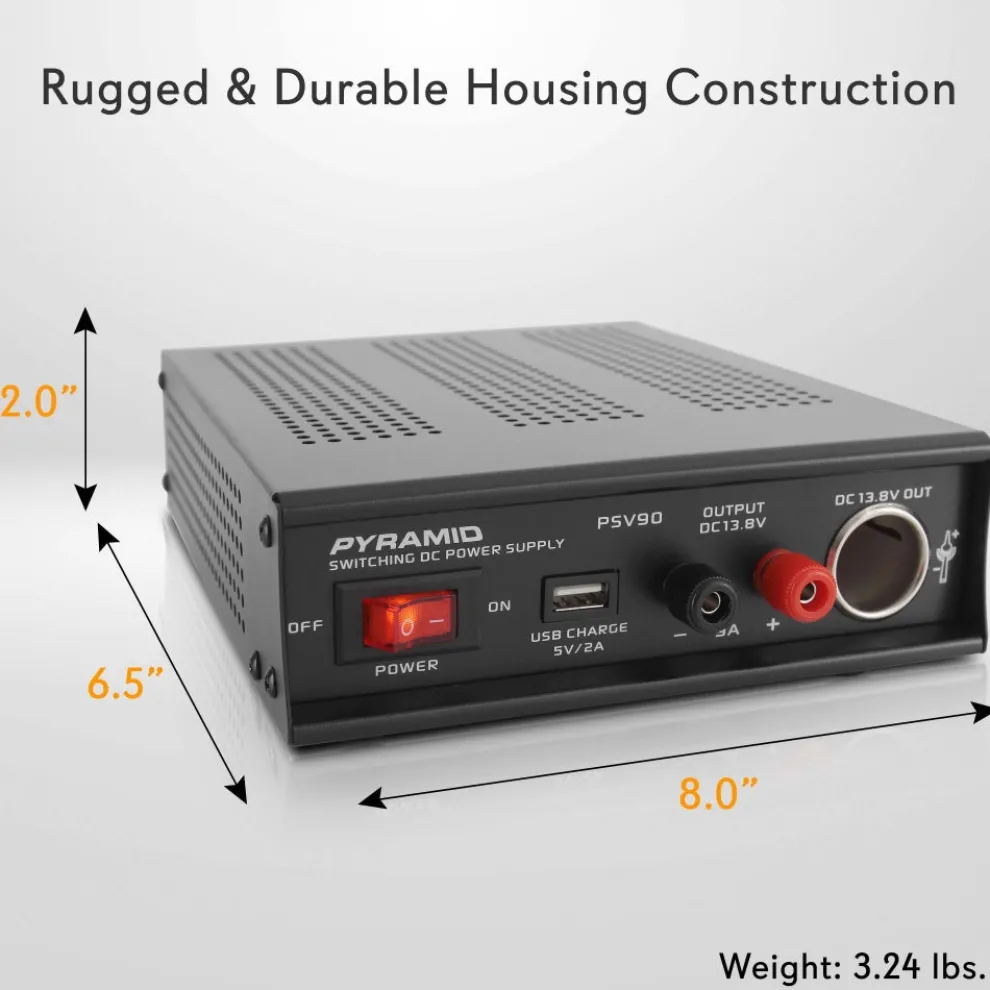

• Dimensions (L x W x H): 8.0’’ x 6.5’’ x 2.0’’ -inches

MANUALS & DOWNLOADS

PSV90 – Manuals
