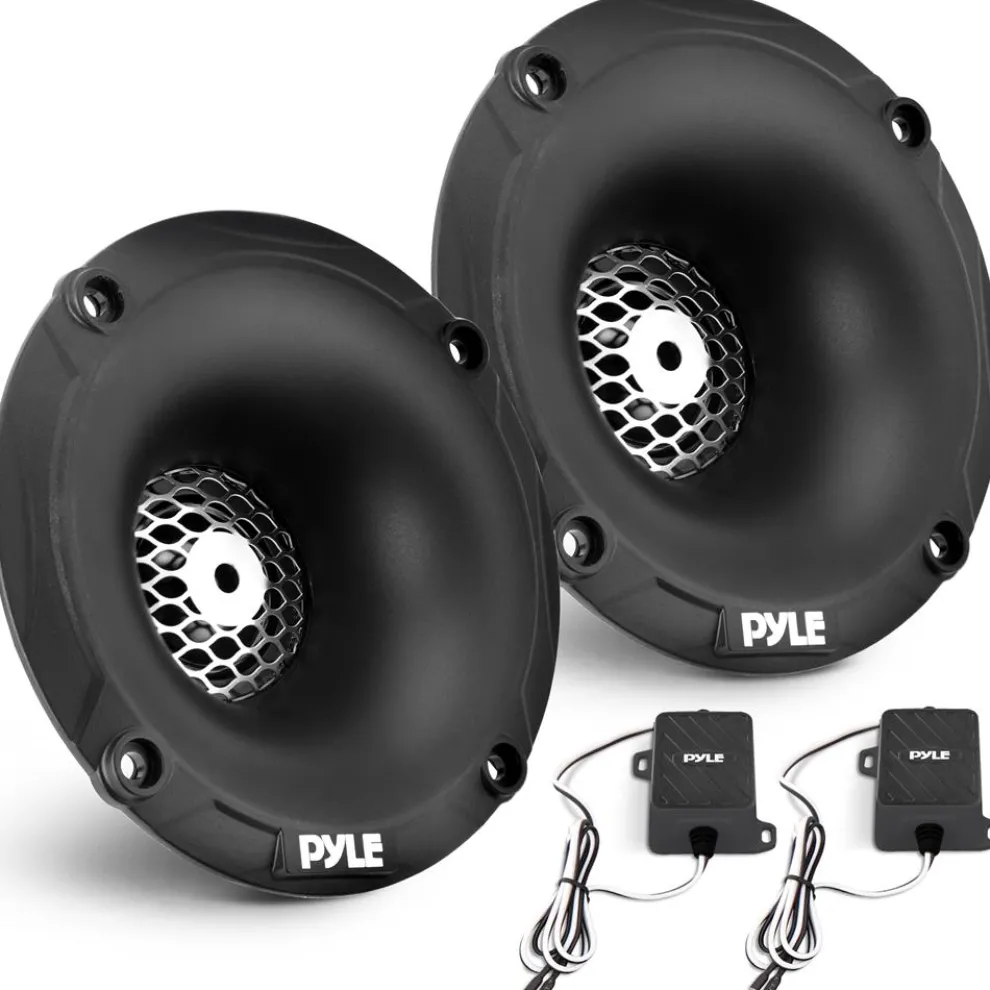

Marine Tweeter Speaker System

Features:

• One Pair 1” PEI Dome Tweeter
• PEI Diaphragm
• 1” High-Temperature ASV+CCAW Voice Coil
• Neodymium Magnet
• Ensures Low Distortion
• 2 Kinds Flush Mount Capability
• 12dB Two Way Impedance Matching Crossover Network

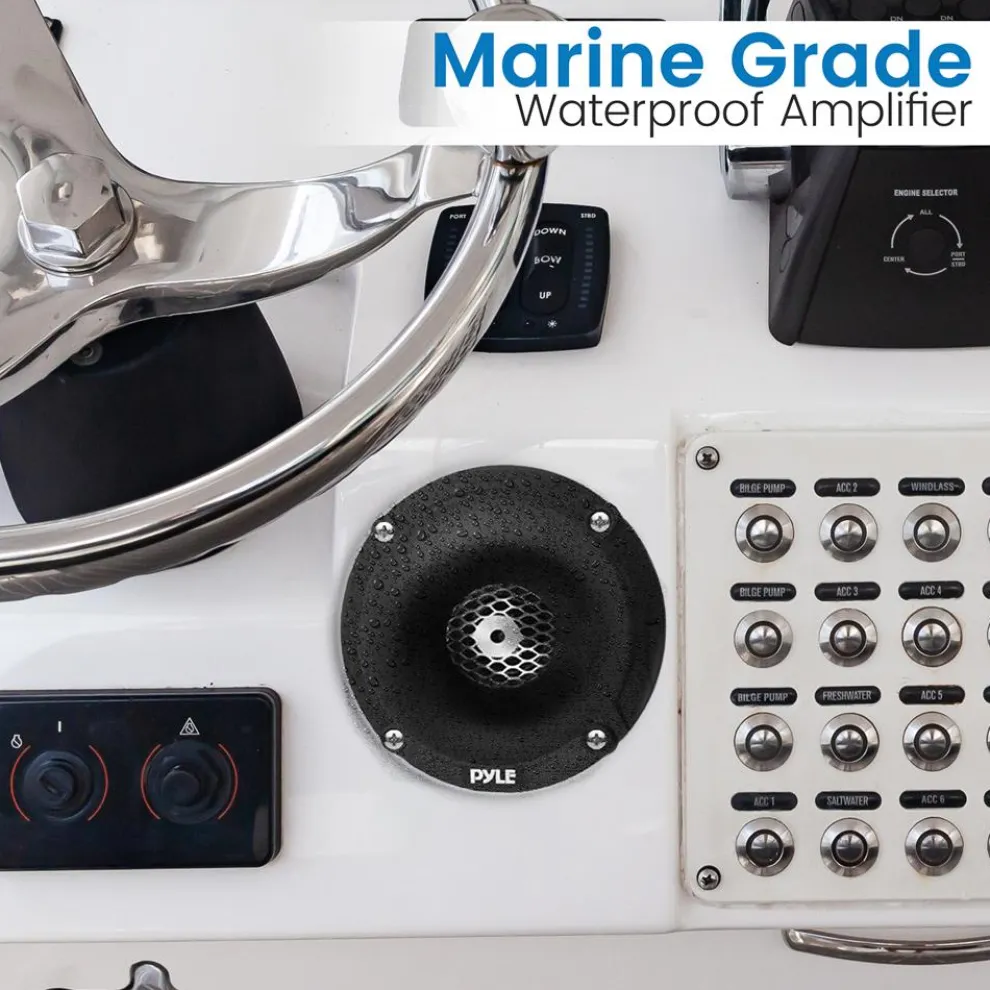

• Marine Grade Waterproof Rating: IP-X5

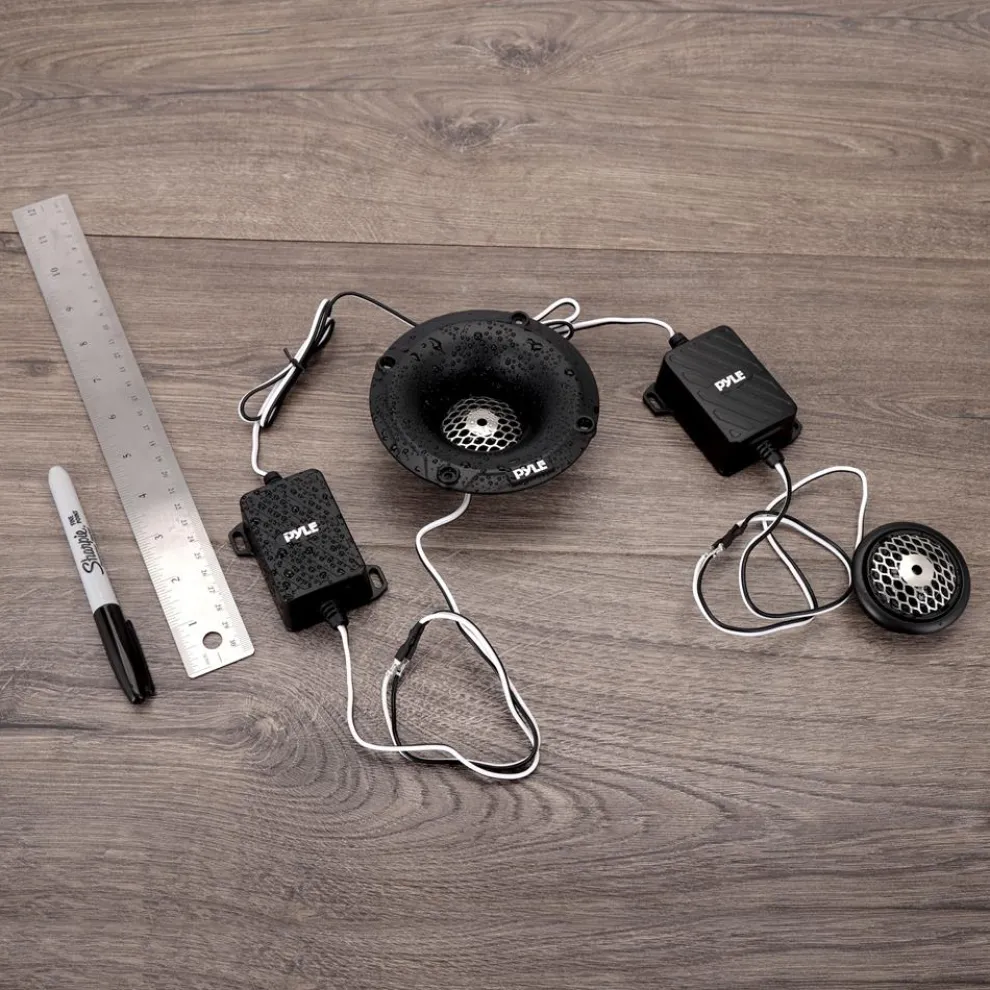

What’s in the Box:

• Pair of Tweeters
• Pair of Crossover Network
• (2) Horn Diffuser
• (2) Plastic Gaskets
• (2) Stainless Mounting Brackets
• (2) Stainless Screw Bags

Technical Specs:

• Power Handling: 120 Watts MAX

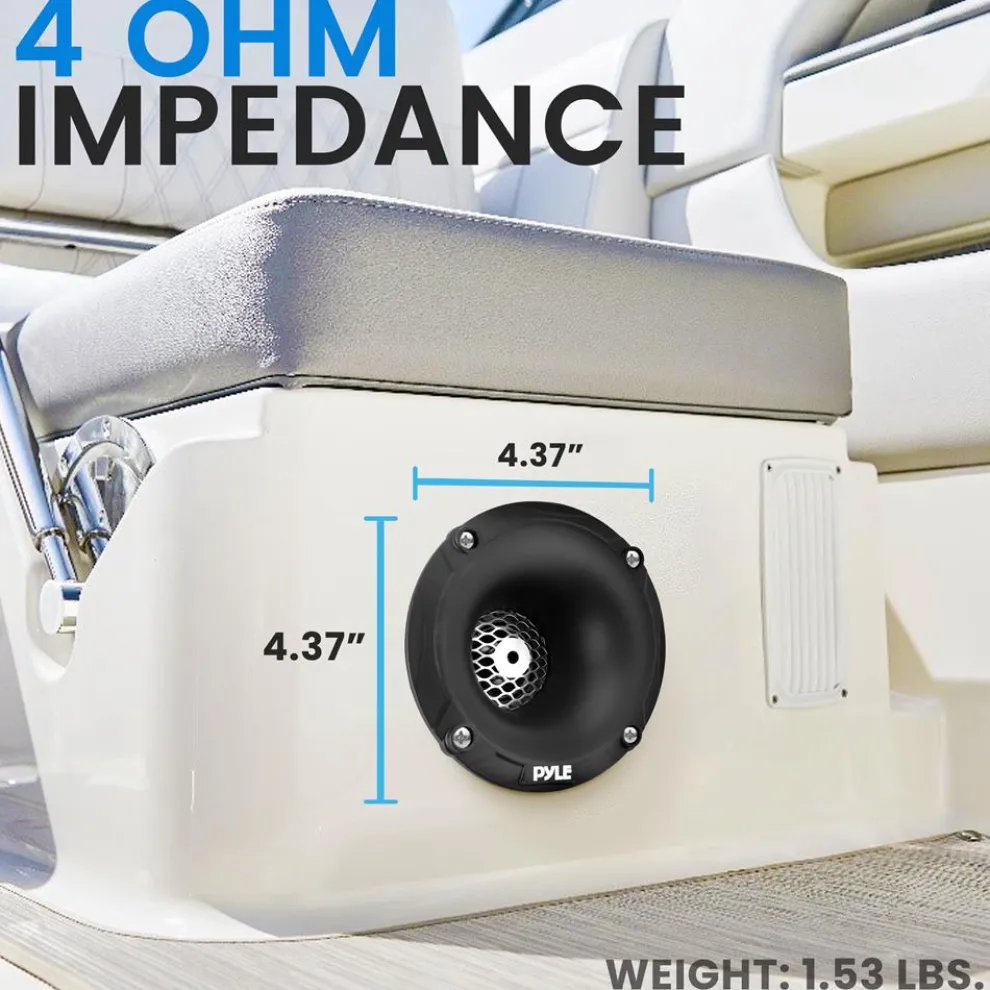

• Impedance: 4 Ohm
• Sensitivity: 93 dB
• Frequency Response: 1.4KHz – 22KHz
• Mounting Depth: 0.67”
• Mounting Depth with Horn Diffuser: 1.42”
• Product Dimension: 2.20” x 2.20” x 1.06” -inches
• Product Dimension with Horn Diffuser: 4.37” x 4.37” x 1.65” -inches

MANUALS & DOWNLOADS

PLMRTW25B – Manuals
