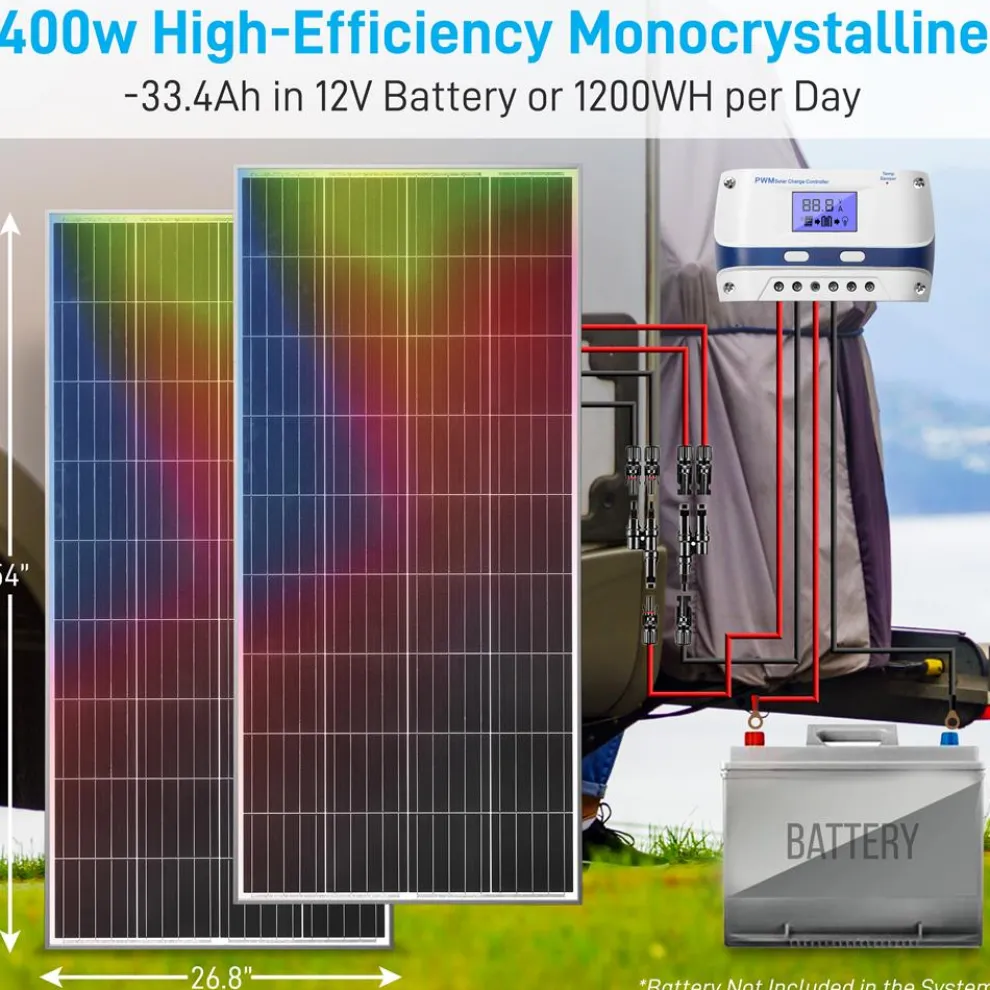

Mono Solar Panel Starter Kit

• Features: – Includes 30A PWM Controller with LCD Screen – Portable and Easy Set-Up – Sleek Design for Aesthetic Quality – Grade A Mono Solar Cells – Higher Module Conversion Efficiency – Each Panel Produces 600-1200Wh a day
• Generates 10.2 amp Power – Charges 12/24 Volt Battery – Anodized Aluminum Frame to Protect Solar Cells – Convenient for Installation – Pre-drilled Holes, Compatible with Common Ground Mounts – Foam Box for Safe Transport and Easy Storage
• Dust Tight and Waterproof with IP67 Rating – Set Up in Just 5 Minutes for Solar Starters – Used for Marine, Dry Camp, RVs, and Other Off-grid Applications What’s in the Box: – (2) 200W Mono Solar Panel
• 30A Solar charge controller (White) – (2) Sets Of Mounting hardware / Z-brackets – 20′ 10 AWG Solar Extension Cable (Red), Pre-assembled Female Connector (between solar panel to controller) – Open-Circuit Voltage (Voc): 24.3V
• 20′ 10 AWG Solar Extension Cable (Black), Pre-assembled Male Connector (between solar panel to controller) – 10′ 10 AWG Wire (Red), Pre-assembled Battery Lug (between controller to battery) – 15A Fuse and Replacement – (10) Wire Fixers – Fuse: 15A

Features:

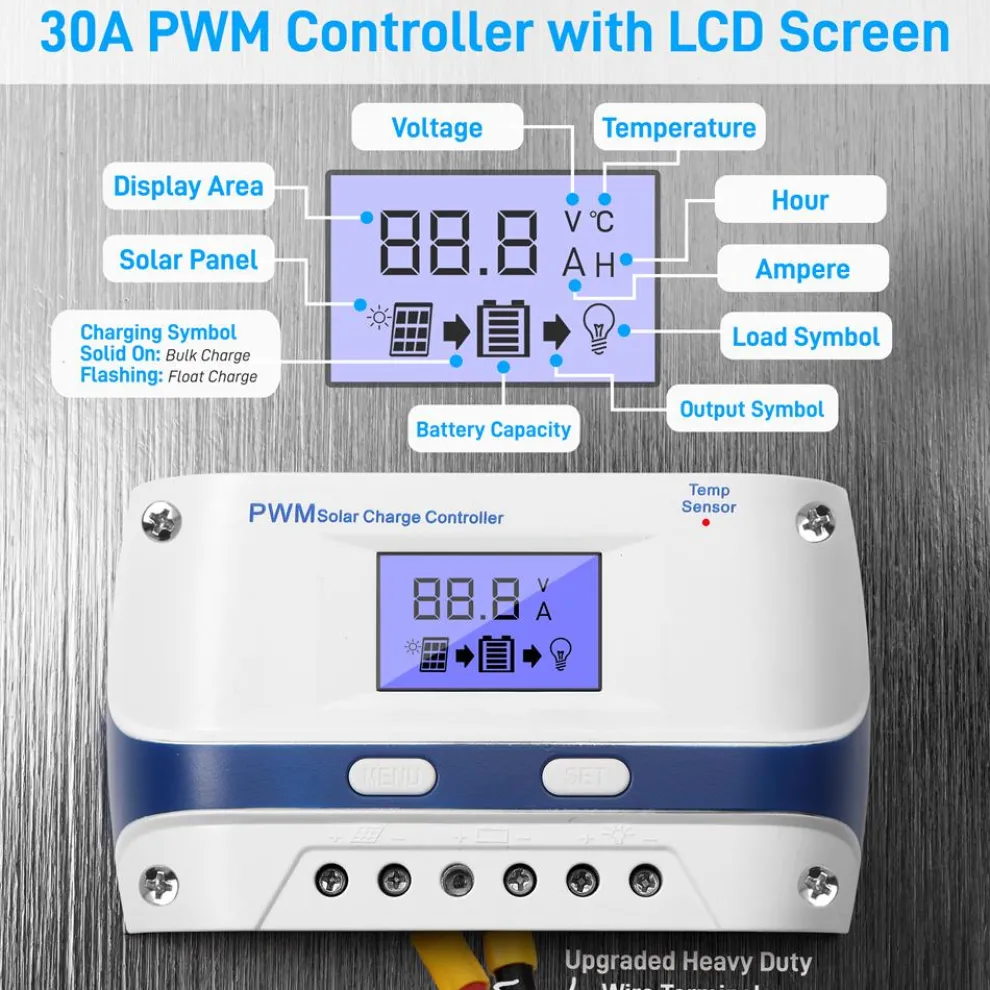

• Includes 30A PWM Controller with LCD Screen
• Portable and Easy Set-Up
• Sleek Design for Aesthetic Quality
• Grade A Mono Solar Cells
• Higher Module Conversion Efficiency
• Each Panel Produces 600-1200Wh a day
• Generates 10.2 amp Power
• Charges 12/24 Volt Battery

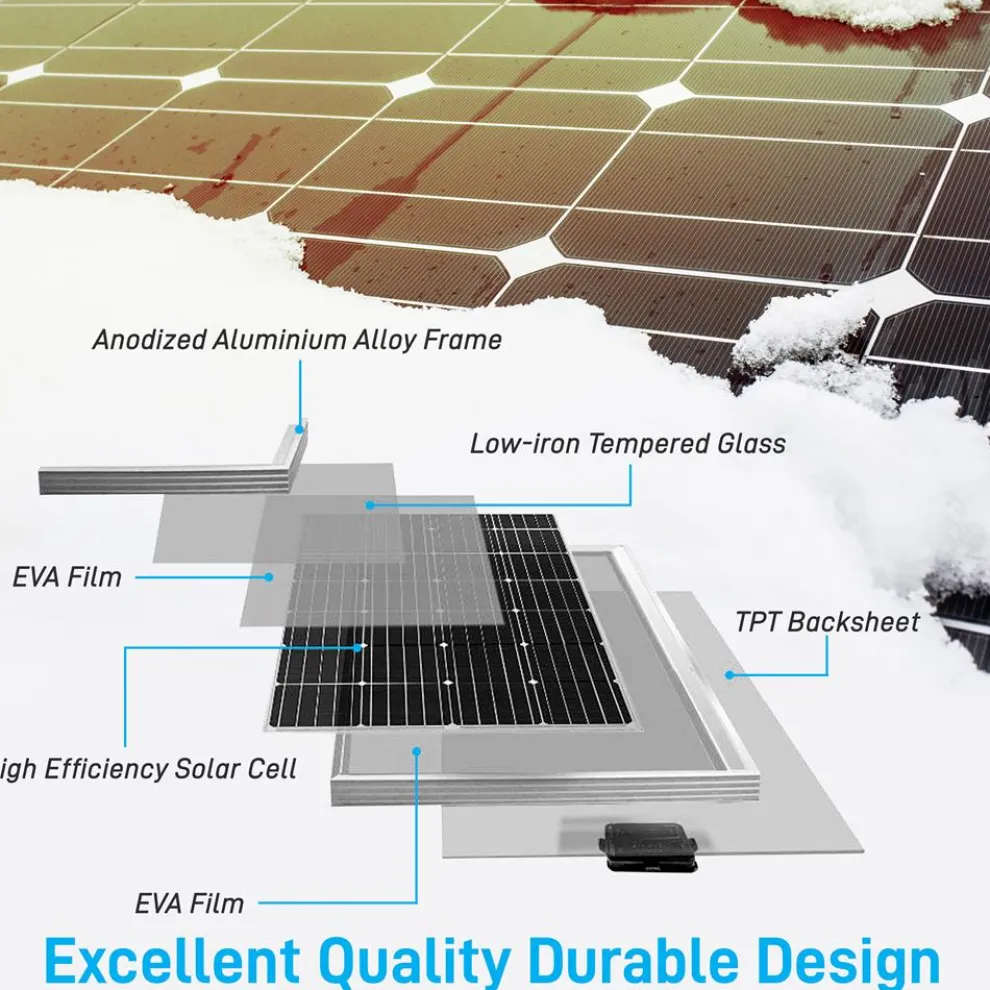

• Anodized Aluminum Frame to Protect Solar Cells
• Convenient for Installation

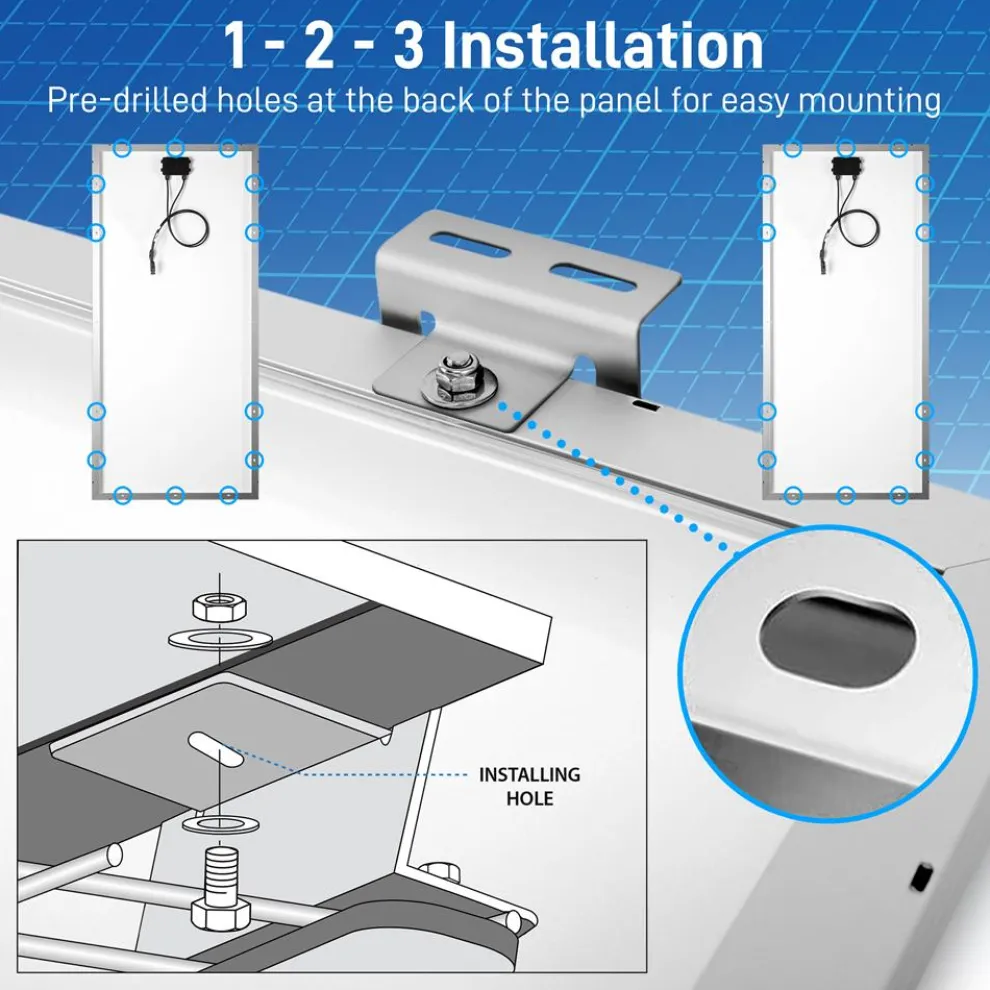

• Pre-drilled Holes, Compatible with Common Ground Mounts
• Foam Box for Safe Transport and Easy Storage
• Dust Tight and Waterproof with IP67 Rating
• Set Up in Just 5 Minutes for Solar Starters
• Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

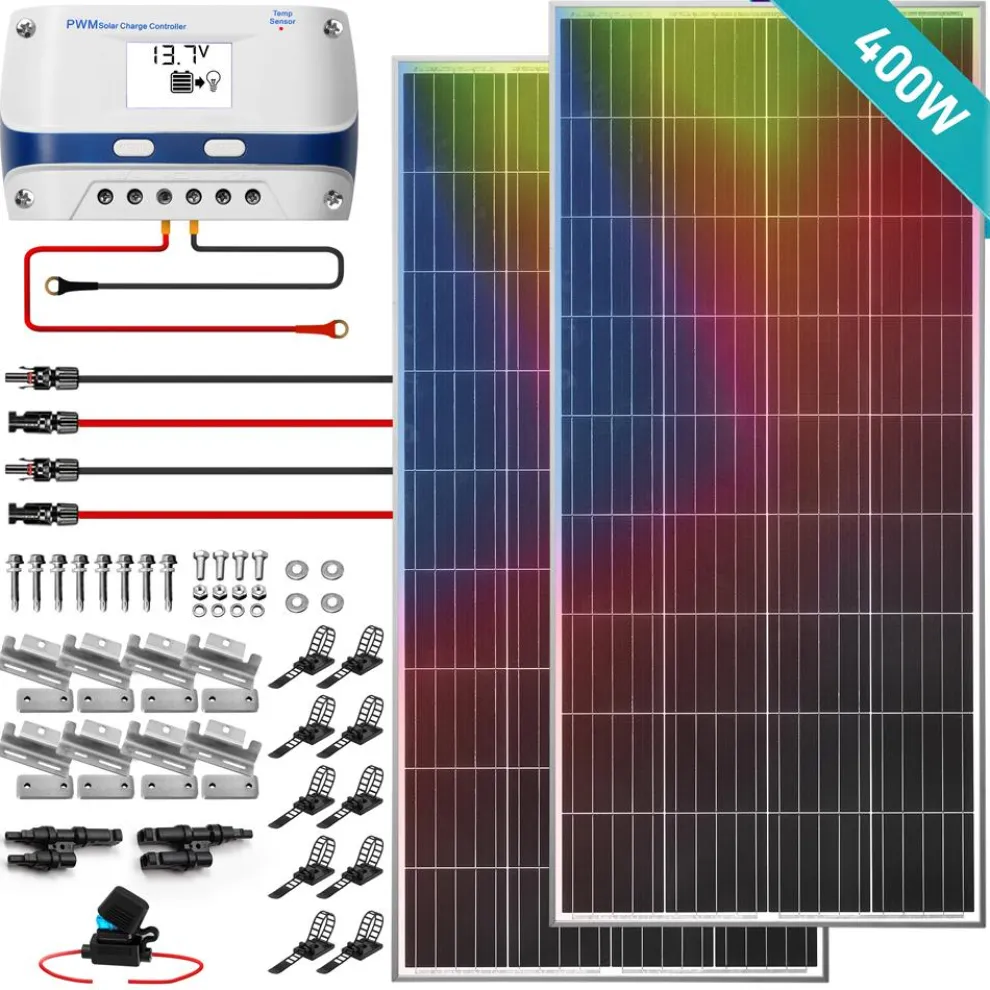

What’s in the Box:

• (2) 200W Mono Solar Panel
• 30A Solar charge controller (White)

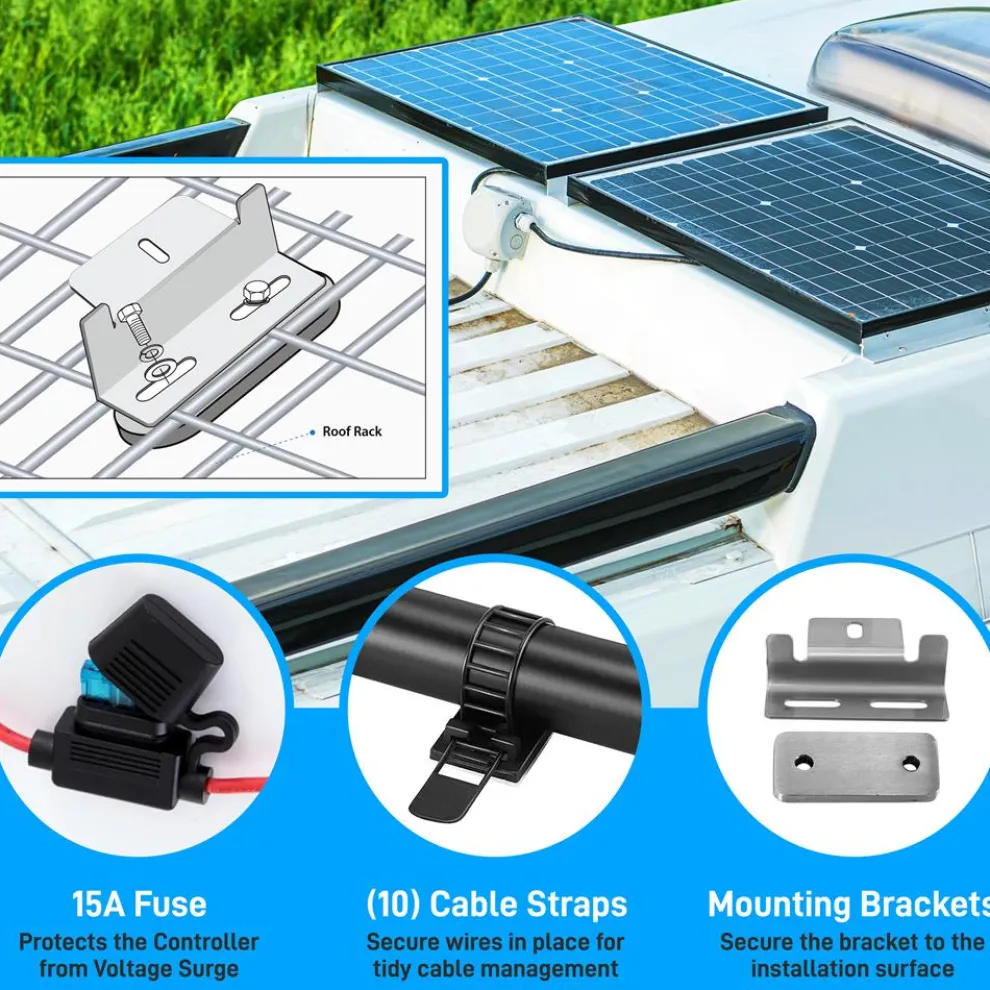

• (2) Sets Of Mounting hardware / Z-brackets
• 20′ 10 AWG Solar Extension Cable (Red), Pre-assembled Female Connector (between solar panel to controller)
• 20′ 10 AWG Solar Extension Cable (Black), Pre-assembled Male Connector (between solar panel to controller)
• 10′ 10 AWG Wire (Red), Pre-assembled Battery Lug (between controller to battery)
• 10′ 10 AWG Wire (Black), Pre-assembled Battery Lug (between controller to battery)
• 15A Fuse and Replacement
• (10) Wire Fixers

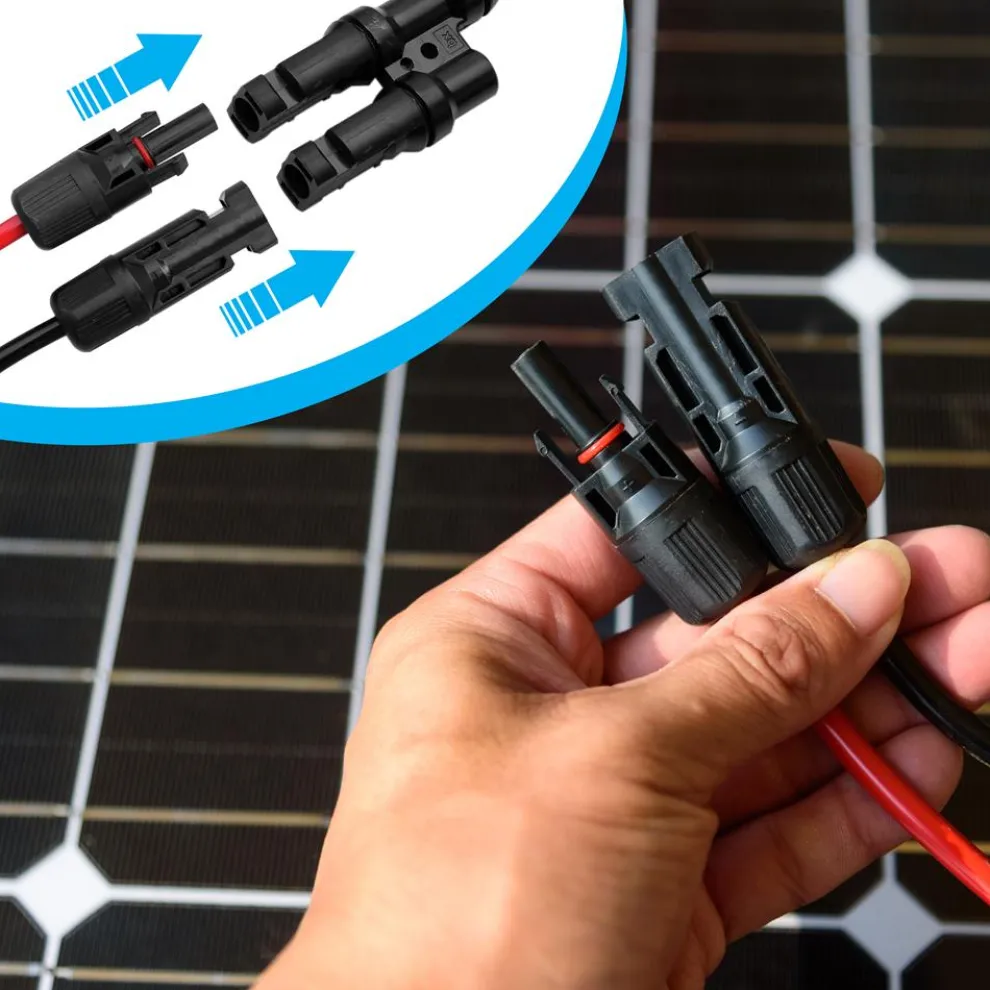

• A Pair of MC4 Connectors

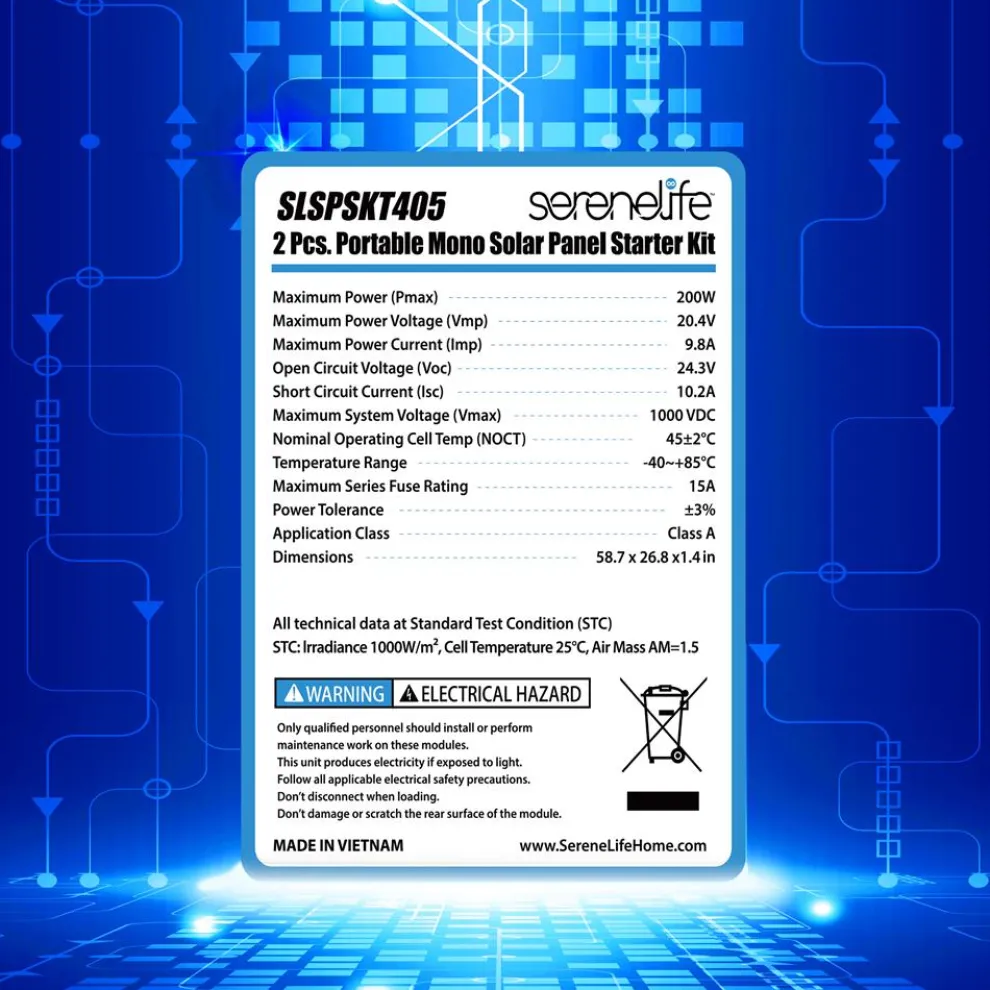

Technical Specs:

• Power Supply: 200W x 2
• Fuse: 15A
• Short-Circuit Current (Isc):10.2A
• Open-Circuit Voltage (Voc): 24.3V
• Maximum Power Voltage (Vmp): 20.4V
• Maximum System Voltage: 1000VDC
• Tolerance of PMax: ±3%
• Series Fuse Rating: 15A
• Maximum Power Current (Imp): 9.8A
• Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
• Cell Type: High-Efficiency Monocrystalline
• Operating Temperature: Controller and Inverter: -20℃-50℃
• Solar Panel: -40℃-85℃
• Controller Voltage: 12V/24V
• Max. Input: < 50V
• USB Output: 5V/2A
• Standby Current: < 12mA
• Type of Connector: MC4 Connector
• Wire/Cable Length: 35.4 -inch
• Product Dimension: 58.7” x 26.8” x 1.4” -inches
