Mono Solar Panel Starter Kit

Features:

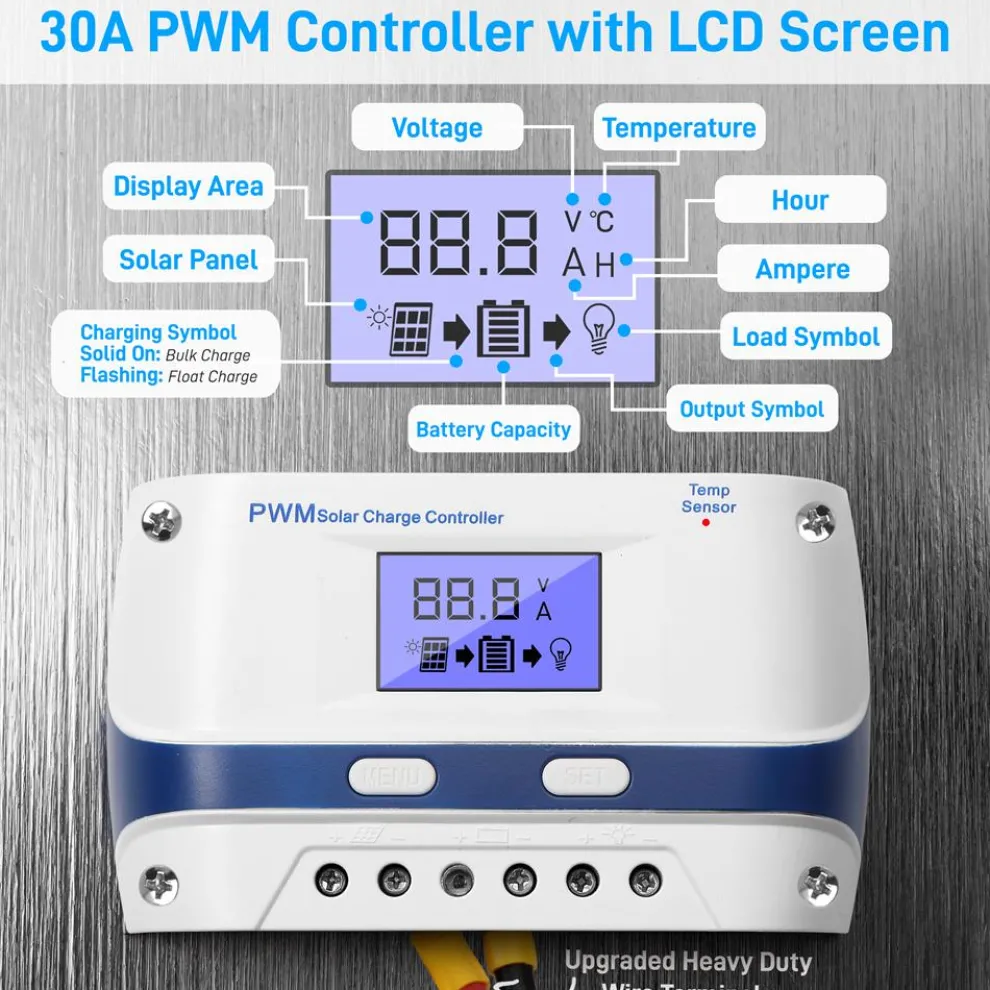

• Includes 30A PWM Controller with LCD Screen
• Portable and Easy Set-Up
• Sleek Design for Aesthetic Quality
• Grade A Mono Solar Cells
• Higher Module Conversion Efficiency
• Each Panel Produces 300-600Wh a day
• Generates 5.3 amp Power
• Charges 12/24 Volt Battery

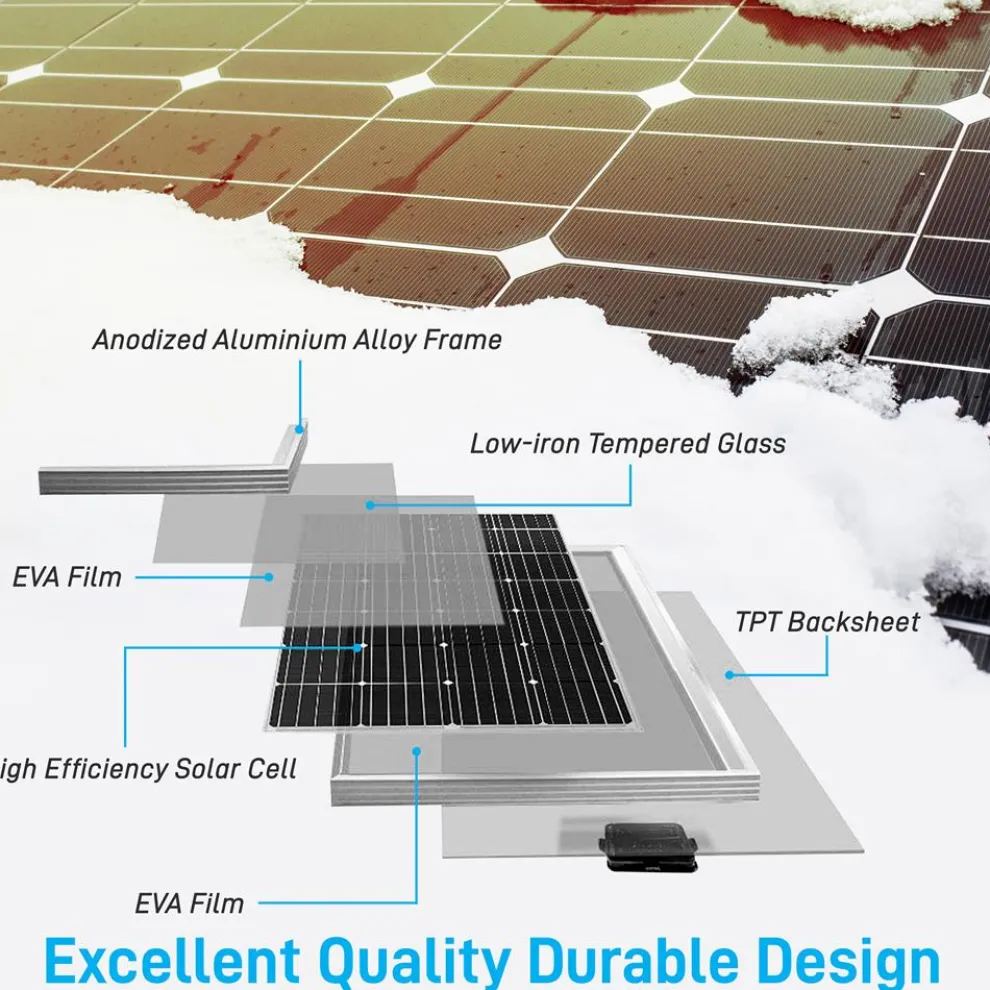

• Anodized Aluminum Frame to Protect Solar Cells & Convenient for Installation

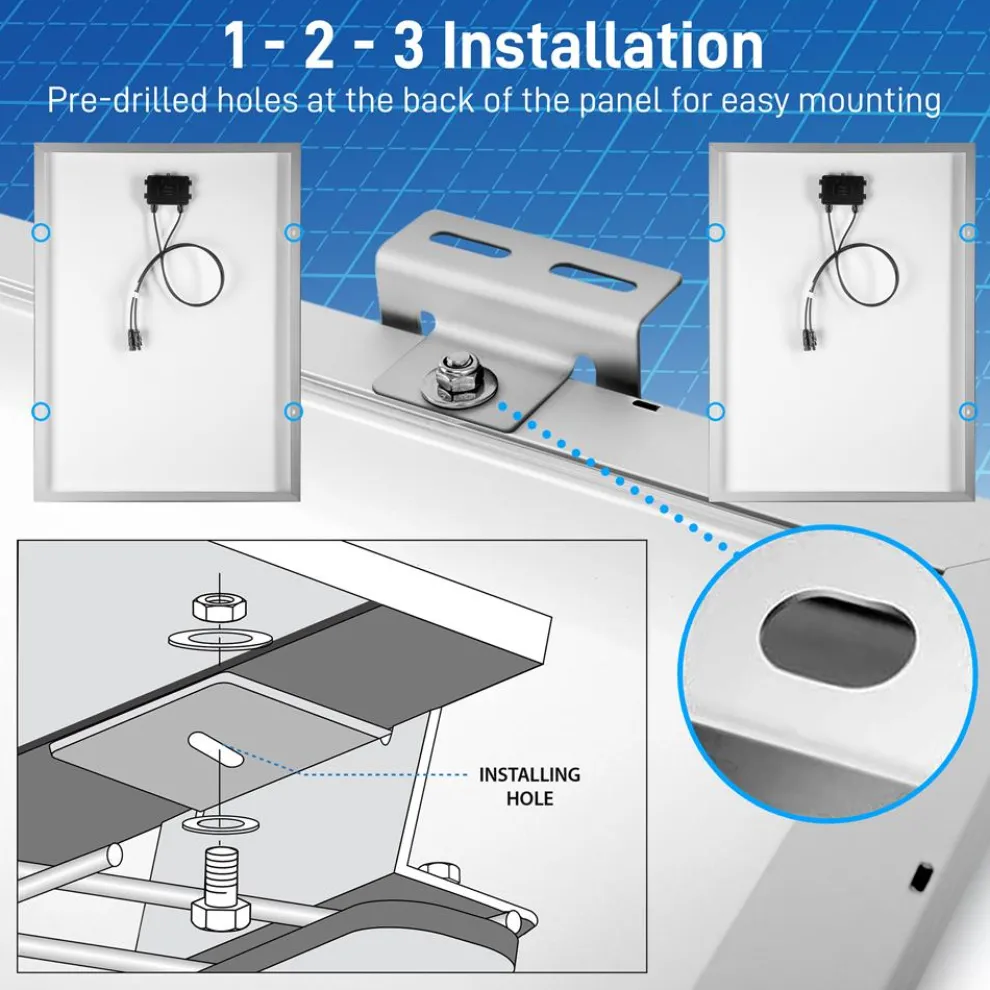

• Pre-drilled Holes, Compatible with Common Ground Mounts
• Foam Box for Safe Transport and Easy Storage
• Dust Tight and Waterproof with IP67 Rating
• Set Up in Just 5 Minutes for Solar Starters
• Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

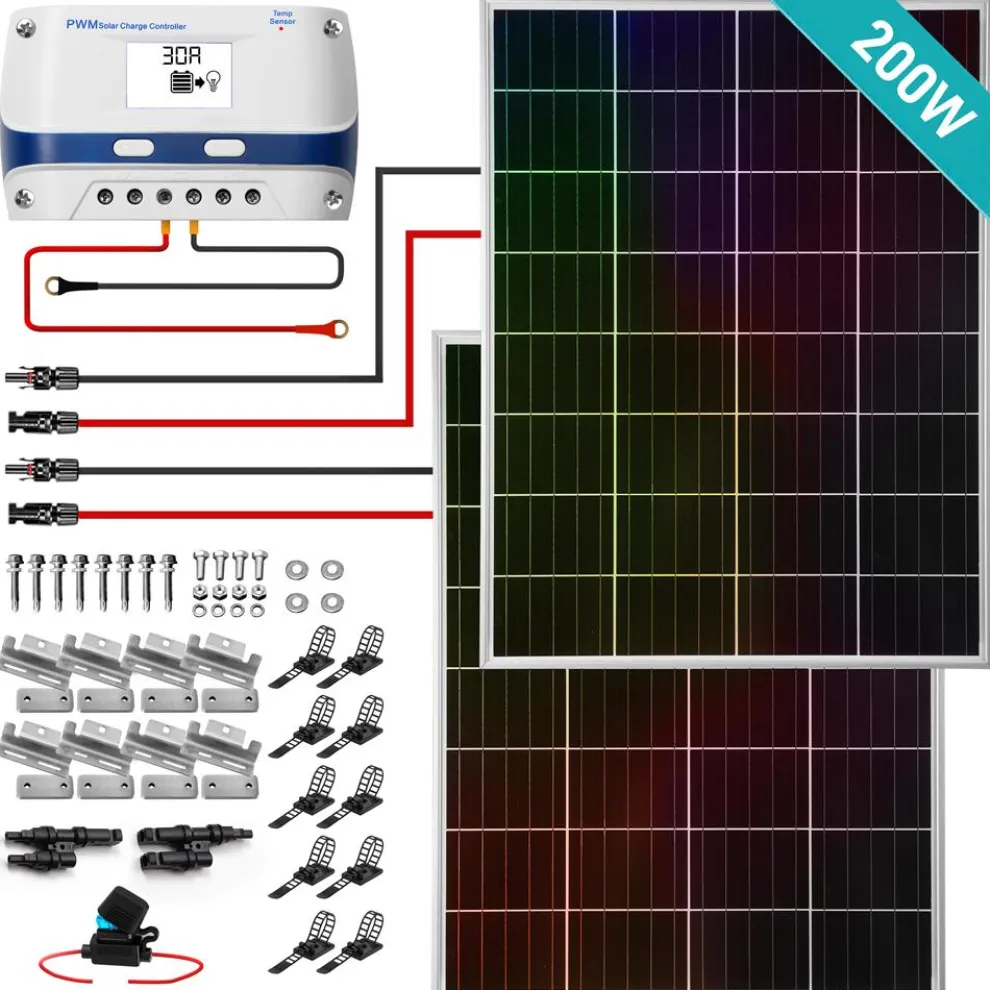

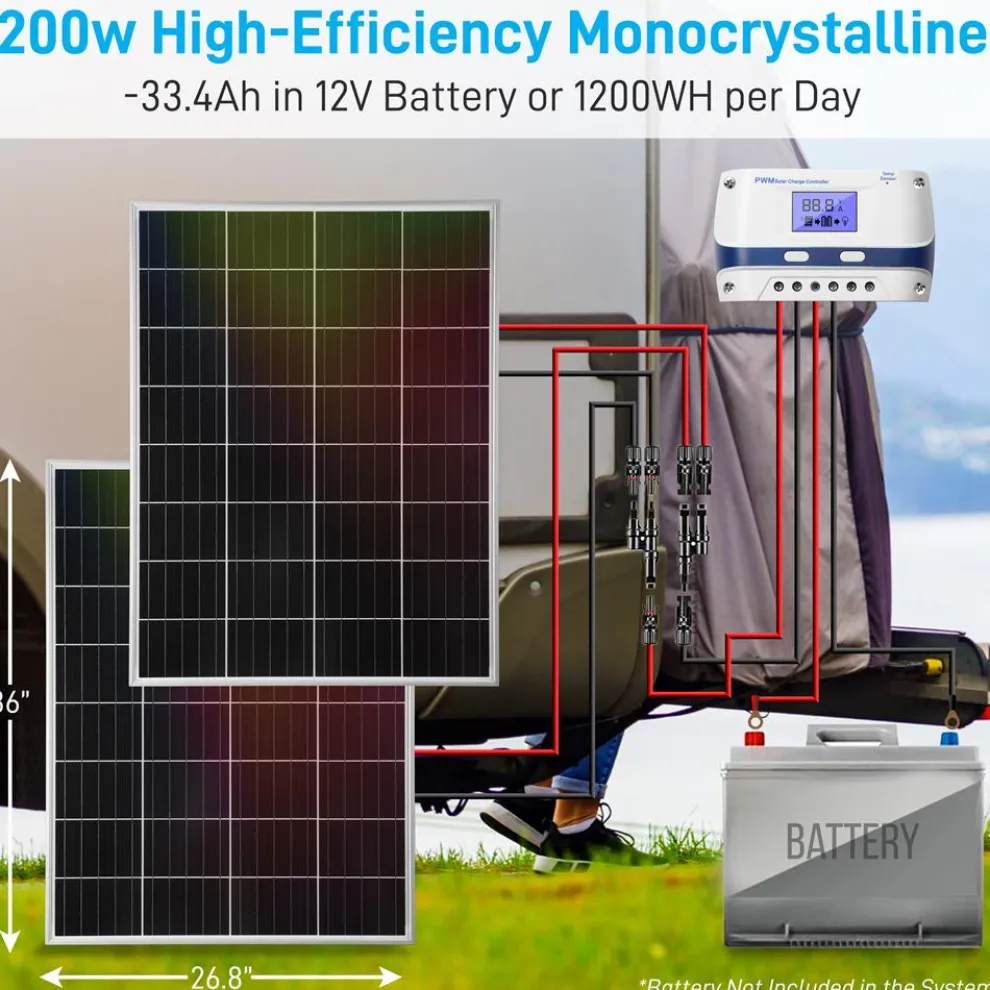

What’s in the Box:

• (2) 100W Mono Solar Panel
• 30A Solar charge controller (White)

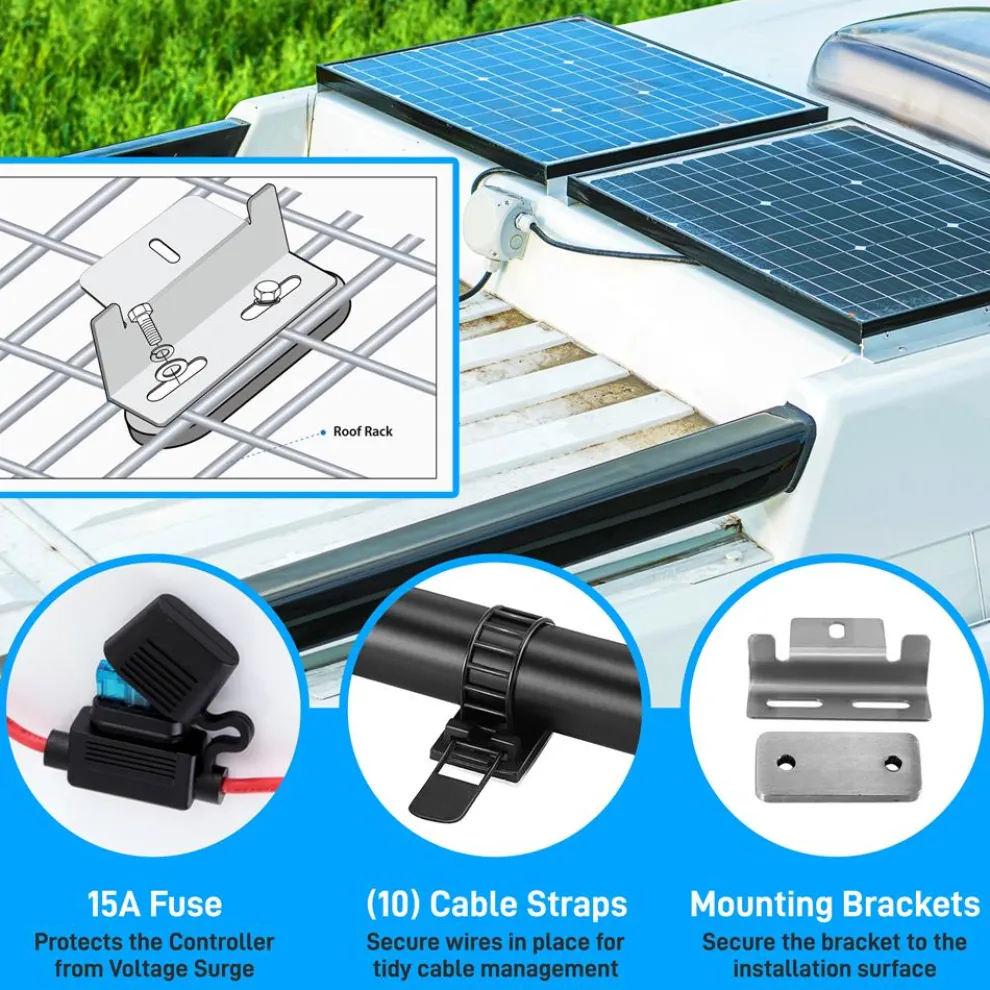

• (2) Sets of Mounting hardware / Z-brackets

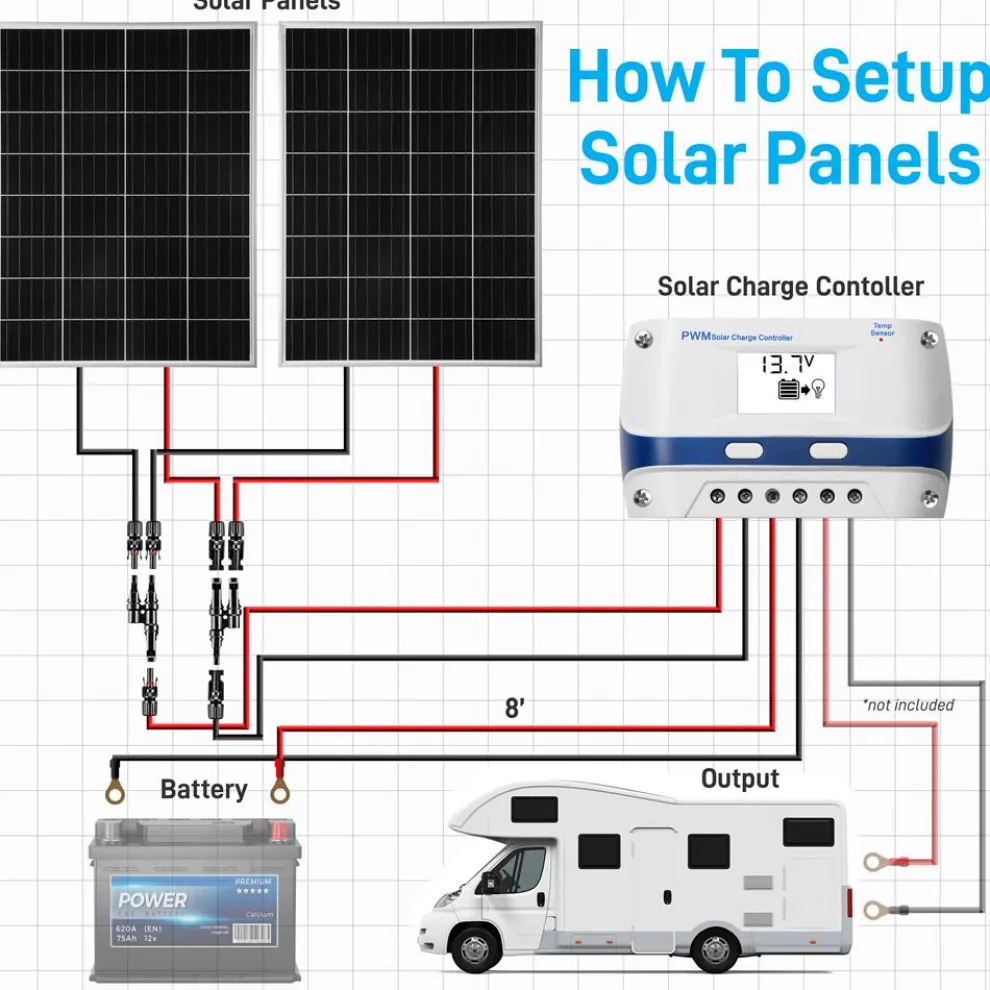

• 20′ Solar Extension Cable (Red), Pre-assembled Female Connector (between solar panel to controller)
• 20′ Solar Extension Cable (Black), Pre-assembled Male Connector (between solar panel to controller)
• 8′ Extension Cable (Red), Pre-assembled Battery Lug (between controller to battery)
• 8′ Extension Cable (Black), Pre-assembled Battery Lug (between controller to battery)
• 15A Fuse and Replacement
• (10) Wire Fixers

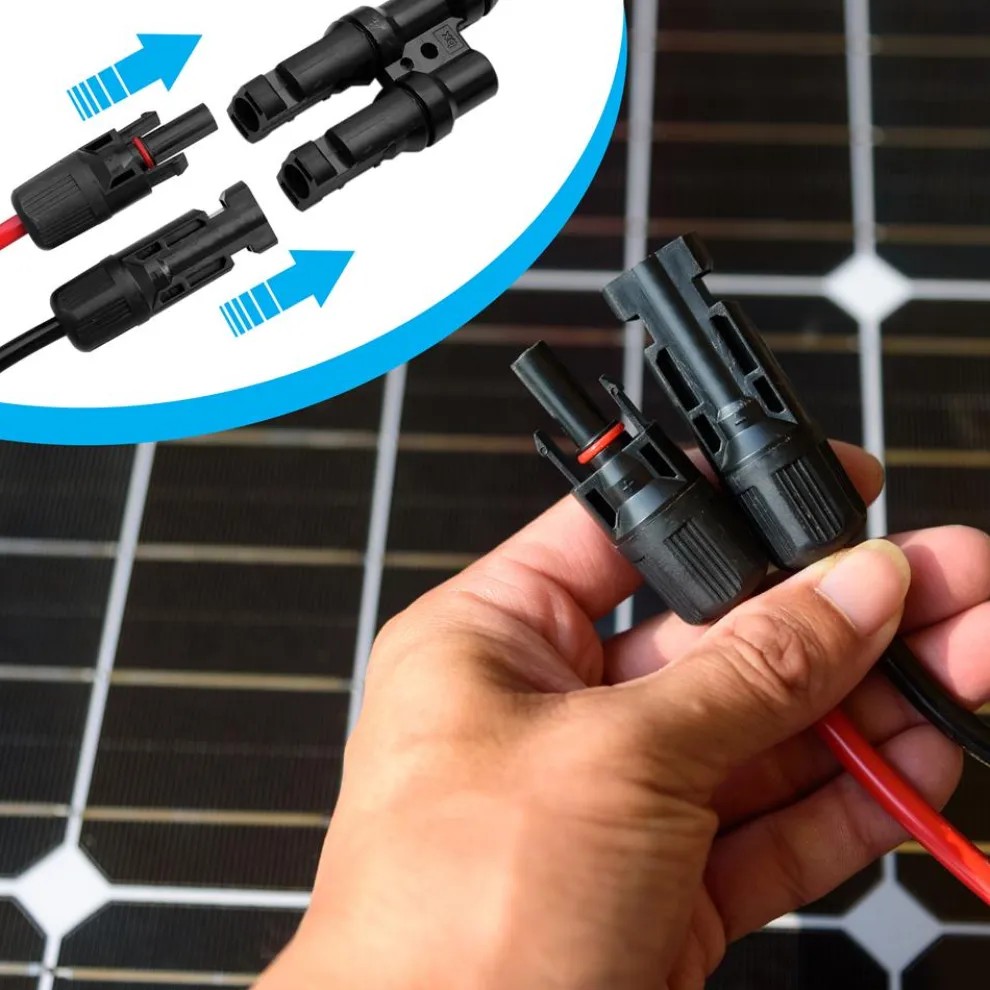

• A Pair of MC4 Connectors

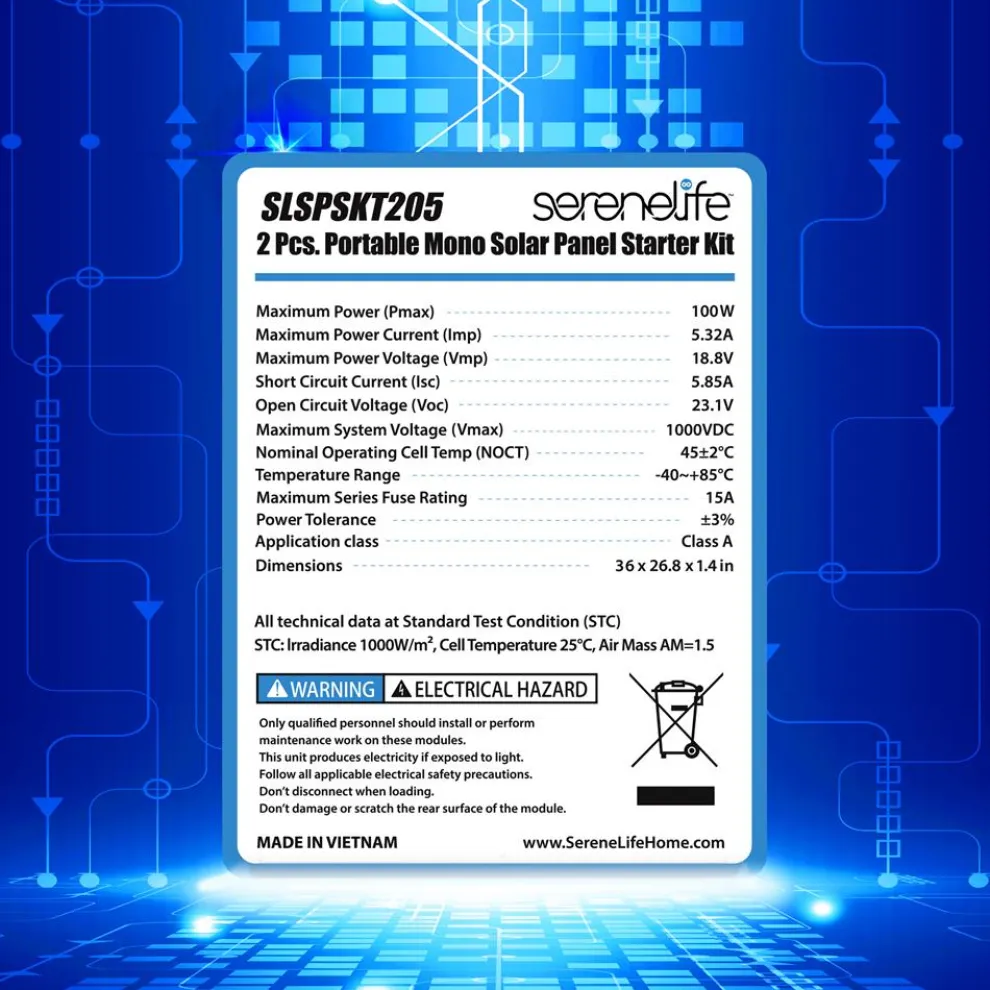

Technical Specs:

• Power Supply: 100W x 2
• Fuse: 15A
• Short-Circuit Current (Isc):5.85A
• Open-Circuit Voltage (Voc): 23.1V
• Maximum Power Voltage (Vmp): 18V
• Maximum System Voltage: 1000V
• Tolerance of PMax: ±3%
• Series Fuse Rating: 15A
• Maximum Power Current (Imp): 5.32A
• Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
• Cell Type: High-Efficiency Monocrystalline
• Operating Temperature: Controller and Inverter: -20℃-50℃
• Solar Panel: -40℃-85℃
• Controller Voltage: 12V/24V
• Max. Input: < 50V
• USB Output: 5V/2A
• Standby Current: < 12mA
• Type of Connector: MC4 Connector
• Wire/Cable Length: 35.4 -inch
• Product Dimension: 36” x 26.2” x 1.4” -inches
