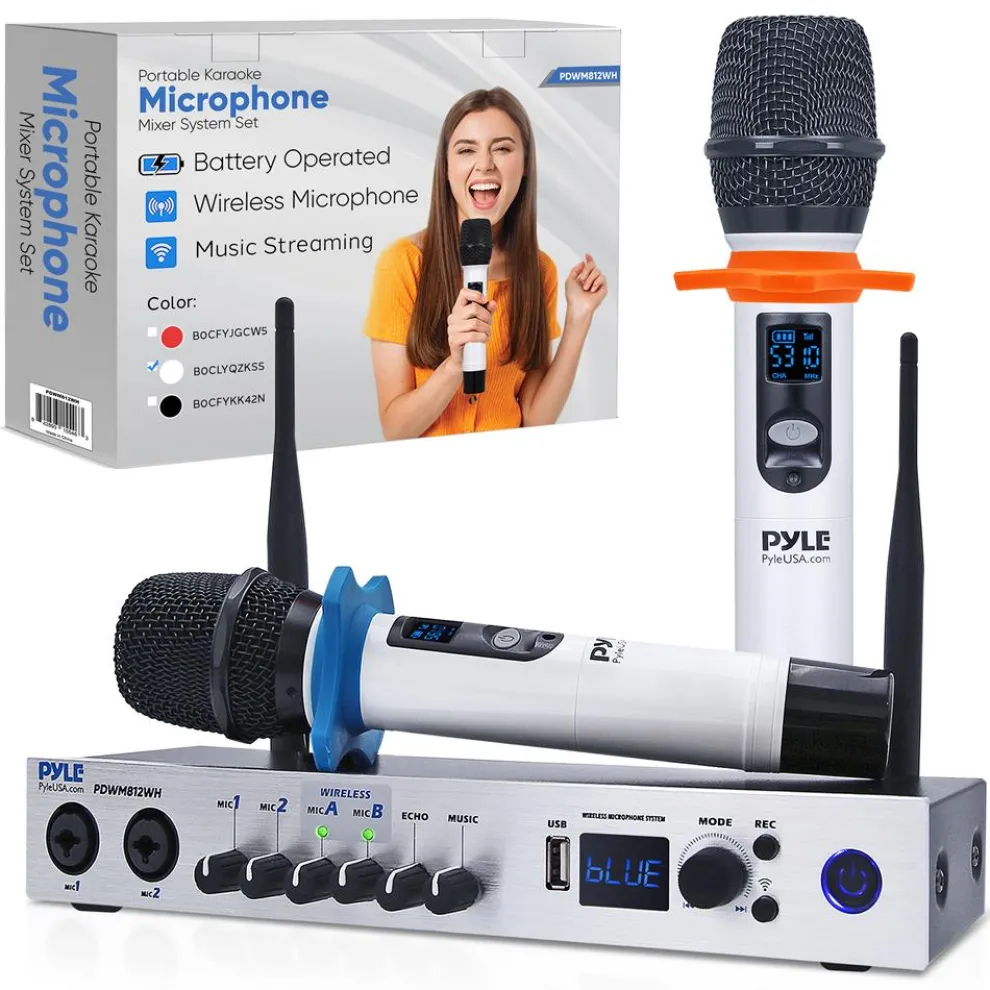

Portable Karaoke Microphone Mixer System

DETAILS

Features:

• Hassle-Free Wireless Microphone System
• Multi-Source Audio Signal Mixing Ability
• Control Audio Levels from External Devices
• Wireless BT Music Streaming Ability
• Dual Fixed Frequency System Design
• Adjustable Rotary Controls: Echo, Tone, Volume: Mic 1, Mic 2

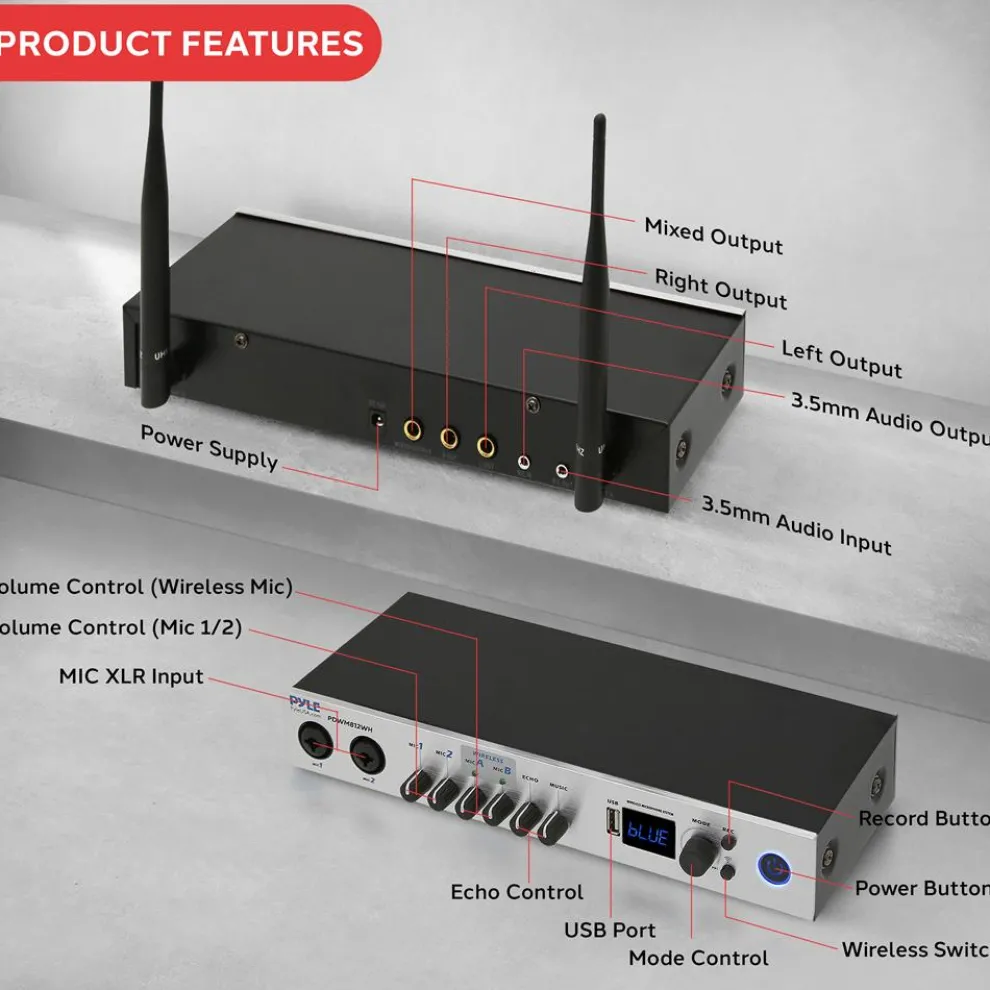

• Wired Microphone Support (2) 1/4’’ Mic Inputs
• (2) 1/4’’ Mic Inputs
• RCA Audio (L/R) lnput/Output Jacks
• Rear Panel 1/4’’ Mixed Output
• Adjustable Antennas for Extended Wireless Range
• Includes Handheld Wireless Microphones
• Rugged Microphone Construction & Steel Mesh Grill
• Convenient ON/OFF/MUTE Power Switch
• Battery Operated Mic, Requires (2) ‘AA’ Batteries, Included
• Ultra-Wide Frequency Range
• Ideal for speech, Karaoke, DJ Sound & House Party Audio

Bluetooth Connectivity:

• Simple & Hassle-Free Pairing
• Works with All of Your Favorite Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless BT Version: 4.2
• Wireless BT Range: 32’ ft

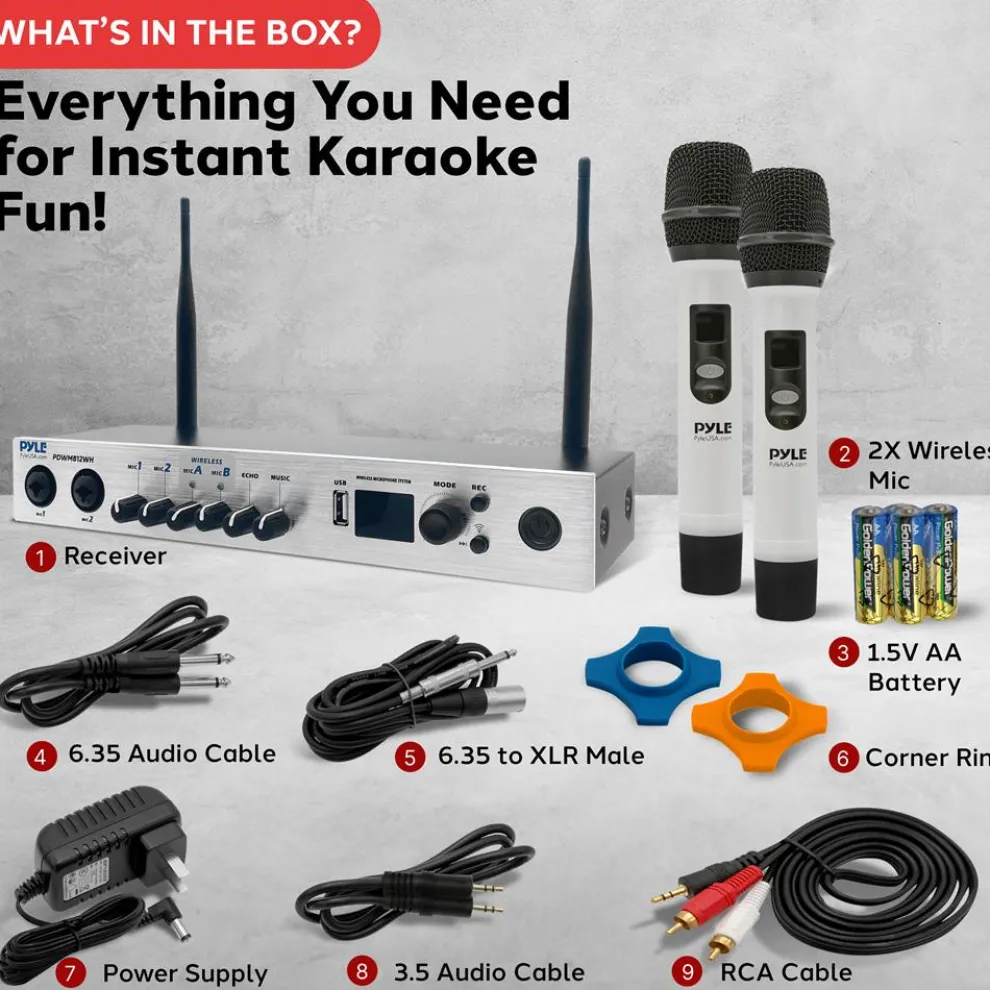

What’s in the Box:

• (2) Handheld Microphone
• (1) 3.5 Double Lotus Conversion Cable, 59.1’’ -inches
• (1) 6.35 to XLR Male, 118’’ -inches
• (2) Four Corner Ring
• (4) No. 3 1.5V AA Battery
• (1) Two Ends of 6.35 through the Machine Line, 39.4’’ -inches
• (1) Dual Channel Cable, 59.1’’ -inches
• (1) Two-pin (UL) Flat Plug Power Cord

Technical Specs:

• Wireless Operation Range: Up to 165’+ ft.
• Modulation Mode: FM
• Maximum Deviation: +/-75KHz
• Audio Dynamic Range: >90dB
• S/N Ratio: >95dB
• T.H.D: <0.5%
• Mirror Image Rejection: >50dB
• LINE Input Sensitivity: 380mV/-8.5dB
• MIC Input Sensitivity: 5mV/-46dB
• LINE Input Impedance: 20 KΩ
• MIC Input Impedance: 600Ω
• Receiver Power Supply: 120/240V (18V/500mA Power Adapter)
• Mic Element: Dynamic
• Antenna: Built-in Housing
• RF Output: <10mW
• Spurious Emission: <-40dB
• Battery Operated Mic, requires (2) ‘AA’ Batteries Each
• Current Dissipation: <140mA
• Microphone Dimensions (L x D): 9.65” x 9.45” -inches
• Base Receiver Dimensions (L x W x H): 11.8” x 3.8” x 1.8” -inches

What’s In The Box

What’s in the Box:

• (2) Handheld Microphone
• (1) 3.5 Double Lotus Conversion Cable, 59.1’’ -inches
• (1) 6.35 to XLR Male, 118’’ -inches
• (2) Four Corner Ring
• (4) No. 3 1.5V AA Battery
• (1) Two Ends of 6.35 through the Machine Line, 39.4’’ -inches
• (1) Dual Channel Cable, 59.1’’ -inches
• (1) Two-pin (UL) Flat Plug Power Cord
