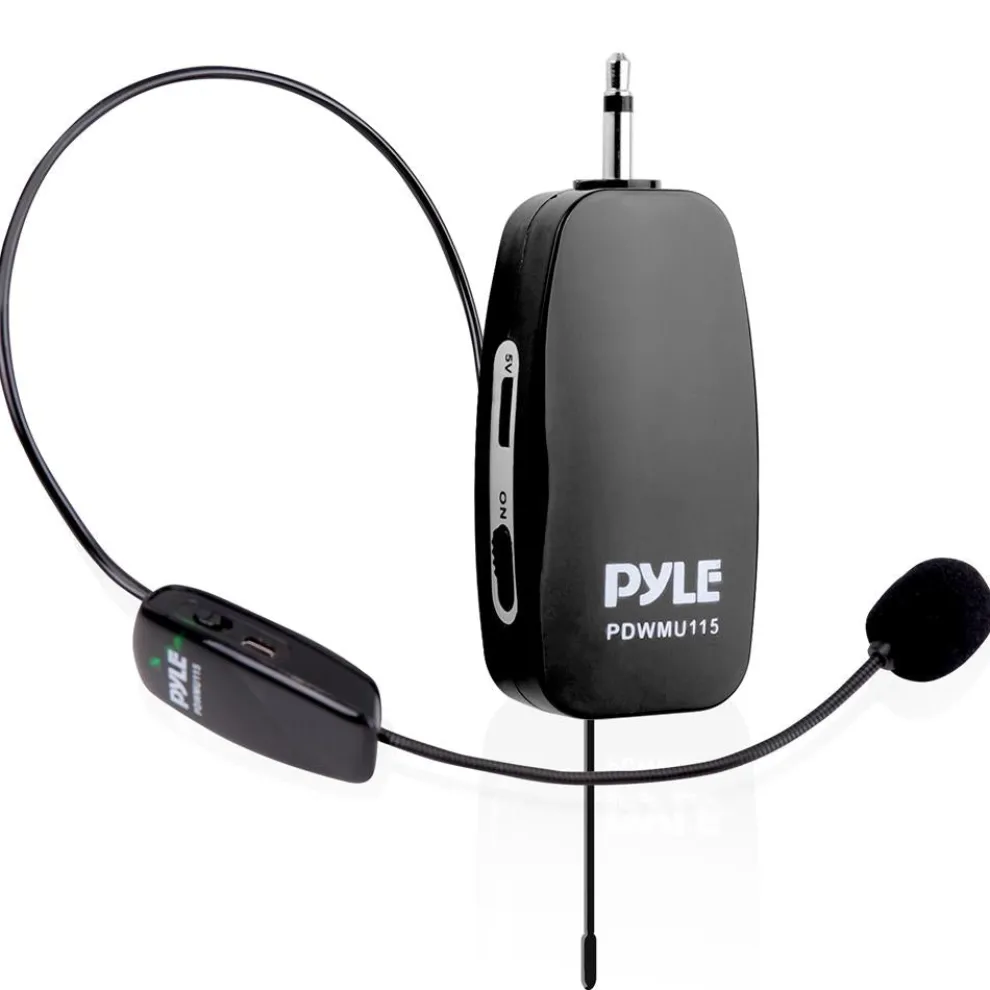

Uhf Wireless Microphone

Features:

• Convenient Microphone Voice-Over
• Already Paired Device before Using
• Simple Plug-and-Play Operation
• Integrated Low Noise Circuitry
• Noise-Eliminating SMT Technology
• Crisp Audio Clarity for Vocals & Singing
• Connect & Stream Audio to External Devices
• 1/4” -inch (6.3mm) Wired Microphone Input
• Rear Panel 1/4” -inch (6.3mm) Unbalanced Mixed Output
• Rear Panel Aux (3.5mm) Audio Input/Output JacksPerfect for Professional Audio Stage & Studio Performances

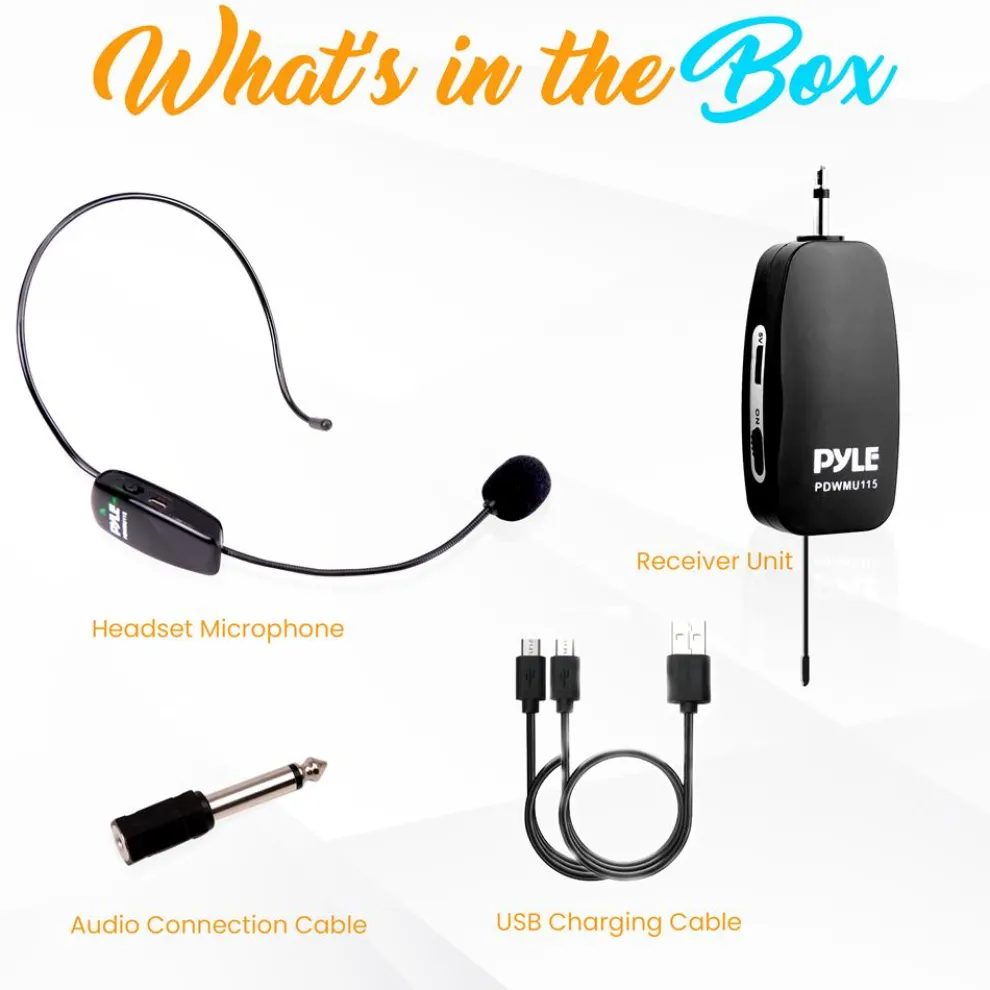

What’s in the Box:

• Headset Microphone

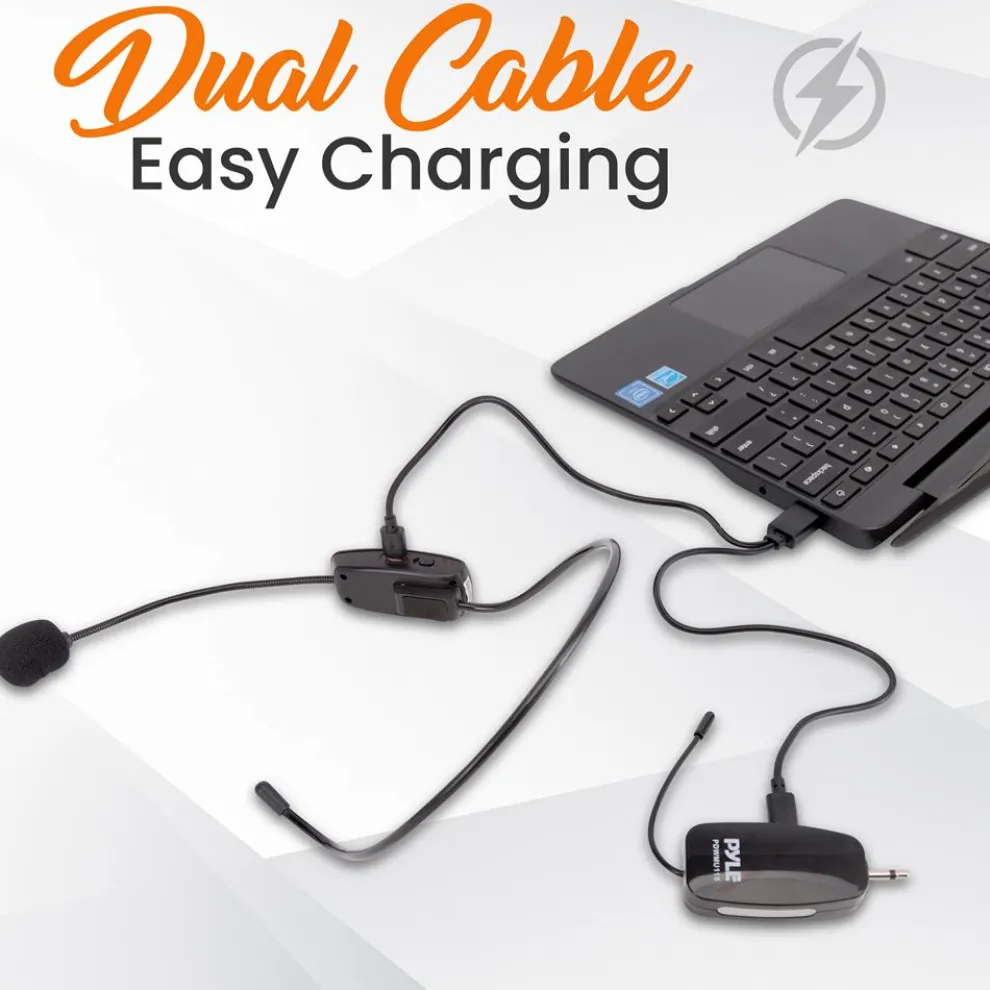

• USB Charging Cable
• Audio Connection Cable
• Receiver Unit

Handheld Transmitter Specs:

• Carrier Frequency: U Band
• Frequency Stability: <0.002%
• Transmit Power: 10mV
• Current Consumption: <25mA
• Harmonic: Main wave 40dB
• Standard: Not Fixed Frequency (Frequency Range:530一550MHz)
• Pickup: 6000 Single Directivity
• Battery Operated: 2*AA/MIC (not included)
• Antenna: Built-in

Receiver Specs:

• Receiving Frequency: U Band
• Frequency Stability: <0.002%;
• Sensitivity: 2mV
• Interference Frequency Ratio > 90dB;
• Image Interference Ratio: >88dB
• Signal to Noise Ratio: >95dB;
• Audio Output: 800mV-1.4V

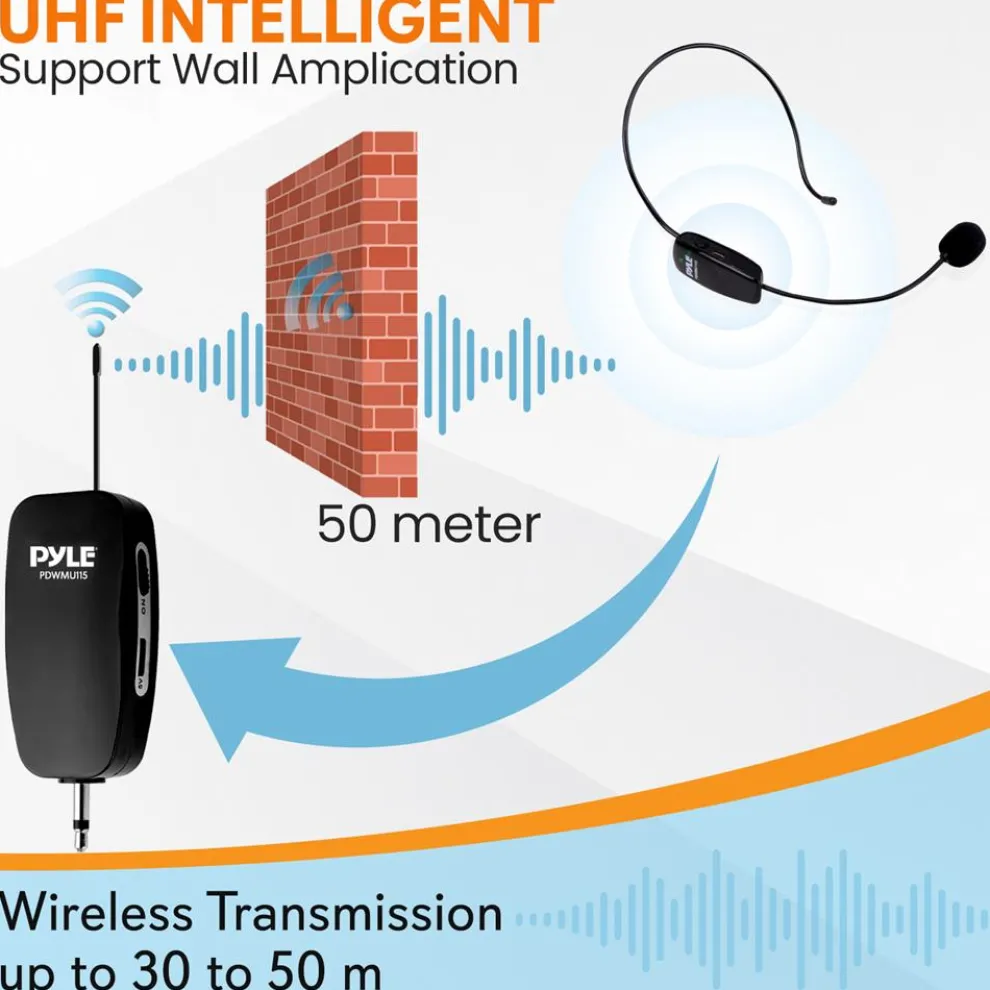

• Working Range: Standard conditions 30 to 50 m
• Receive Channel: 2
• Supply Voltage: 5V
• Battery Type: 1000mAh, Polymer
• Open Circuit Sensitivity: >115 dB
• Frequency Response: 100Hz-10kHz
• Output Impedance: 600 Ohm, +/-3dB (0dB=1V/Pa @ 1kHz)
• Power Consumption: 3W
• Antenna: Universal Antenna
• Product Dimension (L x W x H): 0.49” x 0.49” x 0.16” -inches

MANUALS & DOWNLOADS

PDWMU115 – Manuals
