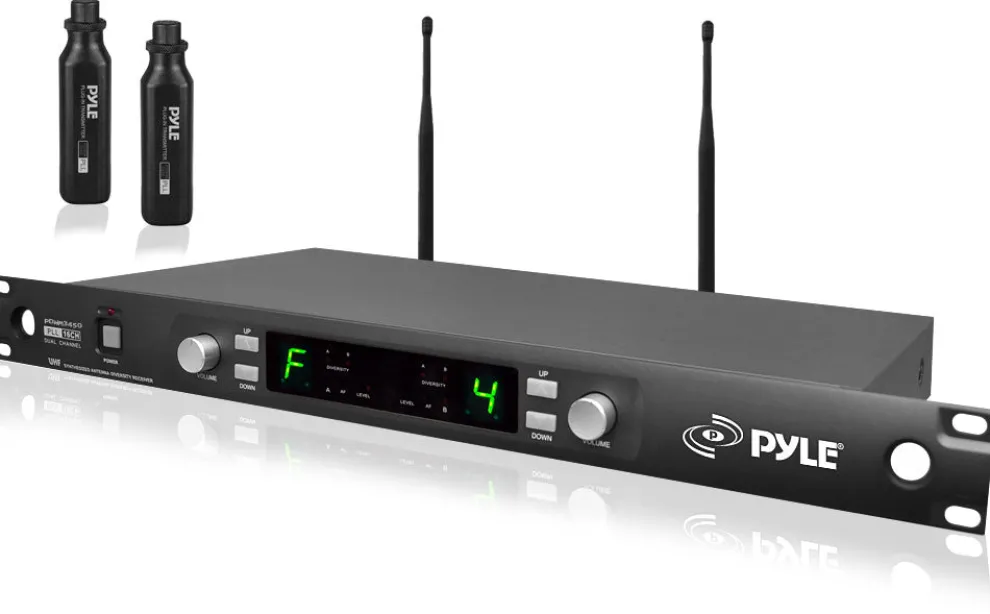

UHF Wireless Microphone System 164ft Range 16 Channels Rack Mountable

The Pyle PDWM3450 delivers clear, noise free, wireless transmission over 16 channels. This easy-to-use and easy-to-install system features individual balanced XLR outputs and a ¼ inch mixed output. The included plug-in transmitters feature a female 3-pin XLR connection and convert any dynamic microphone into a wireless microphone. Each transmitter provides + 5.85 V Phantom power with the flip of a switch making this compatible with most electret condenser microphones. With the PDWM3450, turn any wired PA system into a wireless one. The Pyle PREMIER Series Wireless Microphone System will provide you with the performance you’ve been looking for. Whether used for work or play, this cordless microphone system is easy to setup, easy to use, and best of all, will give you an amazing high-quality audio experience. Choose from 8 different channels to transmit over. Enjoy hassle-free and reliable wireless sound transmission with today’s latest system technology with this all-in-one package. Excellent sound reproduction for vocals or speech

System Features:

• LED Power Indicator & Channel Display
• Operation Range: Up to 164 ft.
• Audio Level Indicator for wireless system audio signal level
• Independent & adjustable channel volume controls
• RF Signal Indicator for transmitter signal strength
• Up to sixteen separate channels to choose from
• Includes two plug-in XLR wireless transmitters
• 1/4″ Mixed audio output jack
• (2) Individual XLR balanced output jacks
• Individual Squelch controls
• Rack mountable system

What’s in the Box:

• Receiver Base
• (2) Plug-in XLR Wireless Transmitters
• Power Adapter

Plug-In Transmitter Specs:

• Includes (2) Plug-in Transmitters
• High/Low Gain Switch
• 16 operational wireless channels
• RF Output: >10 dBm
• Modulation Type: FM
• Max Deviation: ± 68 kHz
• Spurious Emission: >55 dBc
• Nominal Current Drain: <100 mA
• +5.85 V Phantom power supply
• Power Requirements: 1 x 1.5 V AA
• Dimensions (L x W x H): 4.4” x 1.15” x 1.1” -inches

Receiver Specs:

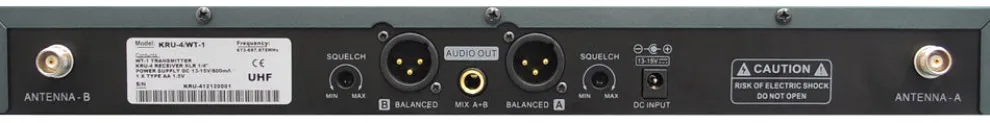

• Individual Balanced XLR Output
• Mixed 1/4” -inch Output
• 16 operational wireless channels
• Individual Squelch controls for each channel
• RF Image Spurious Rejection >80 dB
• Receiving Sensitivity: -105 dB
• Signal/Noise Ratio: -90 dB
• Border Upon Chanel Rejection: >80 dB
• Power Requirements: 13-15V
• DC nominal 800 mA
• Fits in to standard 1 RU space
• Receiver Dimensions (L x W x H): 19.0” x 8.4” x 1.7” -inches
• Power Supply: 110/220V

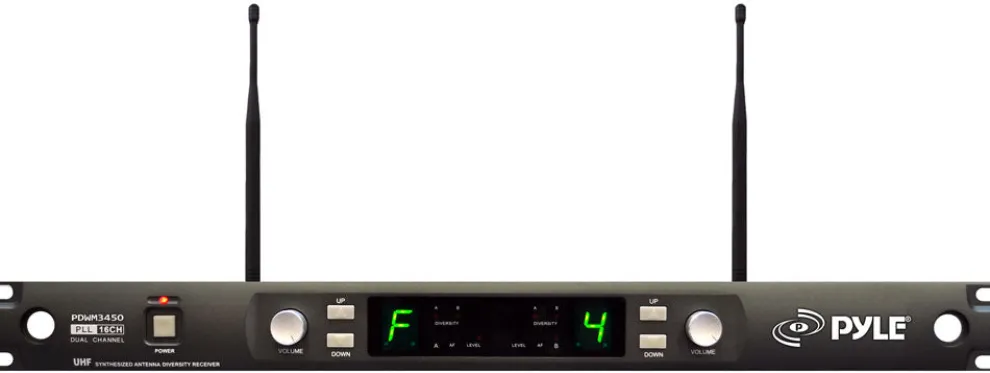

Receiver Base

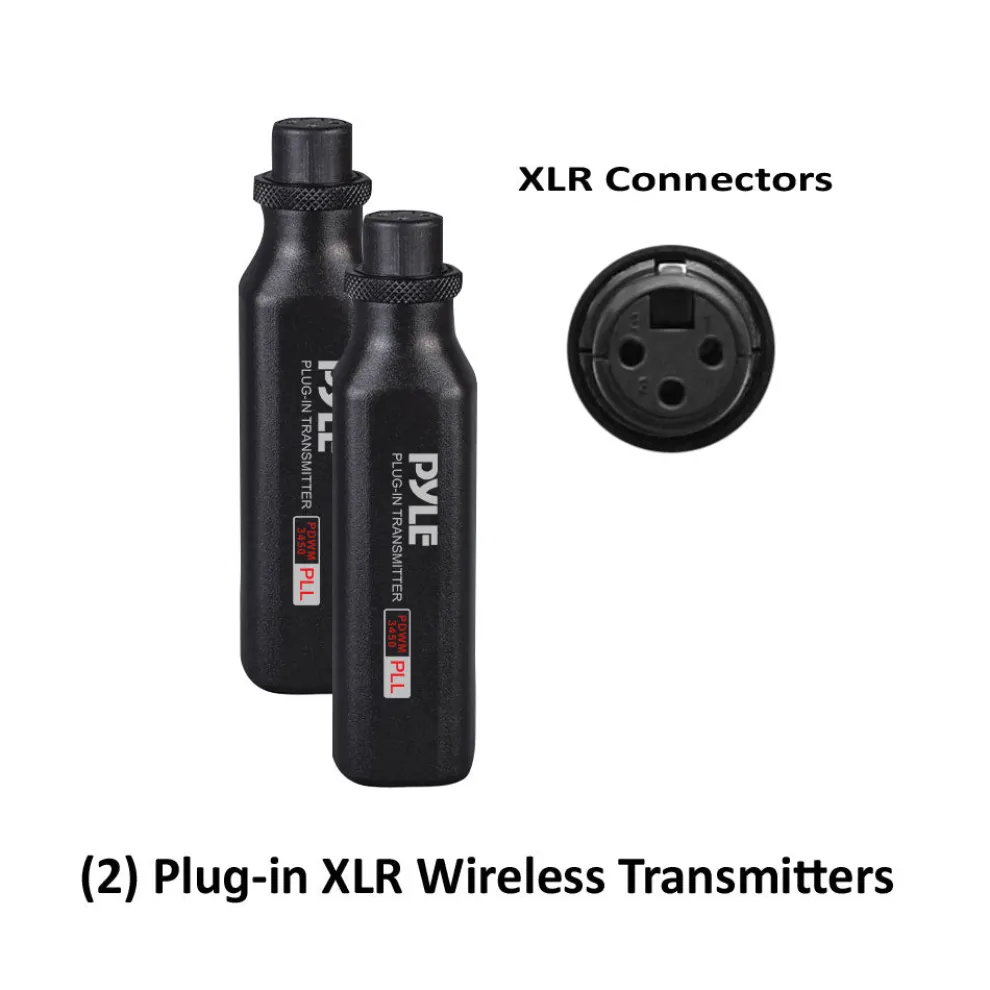

(2) Plug-in XLR Wireless Transmitters

Power Adapter
