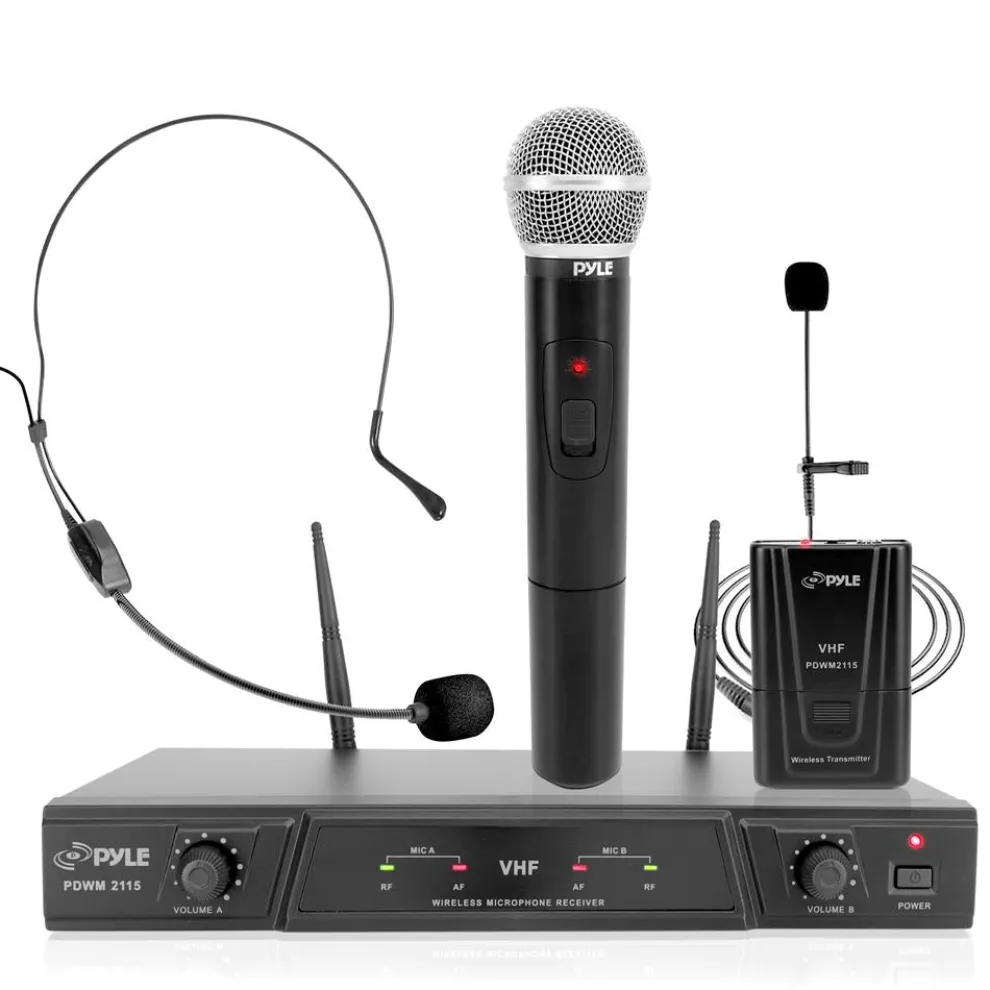

Vhf 2-Ch. Wireless Microphone System Kit

The Pyle PDWM2115 VHF Wireless Microphone System includes wireless beltpack transmitter, handheld, headset and lavalier microphones. This wireless system effectively transmits audio signals for active, energetic performances, and is especially great for mobility, where handing off the microphones is a breeze. Have fun with friends and family at home, start a karaoke party night or use it at work for relaying messages. Additional system features include LED signal indicators, dual frequency design, independent adjustable volume controls and more. Enjoy reliable wireless microphone system sound performance with the Pyle PDWM2115 Wireless Microphone System.

• Features: – Independent Adjustable Volume Control – Radio Frequency and Audio Frequency What’s in the Box: – Beltpack Transmitter – Modulation Degree: >30KHz – S/N Ratio: >70dB – Operating Range: >50 meters
• VHF Narrow Band Receiver – Volume Control Indicators and Status Signals – Receiver Base – 1/4” Audio Connection Cable – Modulation Pattern: FM – RF Image Rejection:-75dB – Power Source: AC 120V / 60Hz
• Dual Frequency Design (Channel A/B) – Audio Output Jacks – Wireless Handheld Microphone – (4) ‘AA’ Batteries Transmitter Specifications: – Power Current: 70dB
• High Signal/Noise Ratio Performance – Dual Independent Channel Antennas – Headset Microphone – RF Power Output: >13dBm – Battery Type: DC 3V Receiver Specifications: – Audio Dynamic Range:95dB – Dimensions: 12.7” x 8.5” x 1.9” -inches
• Broad Frequency Response Range & Low Distortion – RF Signal and AF Signal LED Indicators – Lavalier Microphone – Harmonic at higher Degree: <60dB – Sensitivity: -95dBm (S/N:12dB) – T.H.D: <1%

Features:

• VHF Narrow Band Receiver
• Dual Frequency Design (Channel A/B)
• High Signal/Noise Ratio Performance
• Broad Frequency Response Range & Low Distortion
• Independent Adjustable Volume Control
• Volume Control Indicators and Status Signals
• Audio Output Jacks
• Dual Independent Channel Antennas
• RF Signal and AF Signal LED Indicators
• Radio Frequency and Audio Frequency

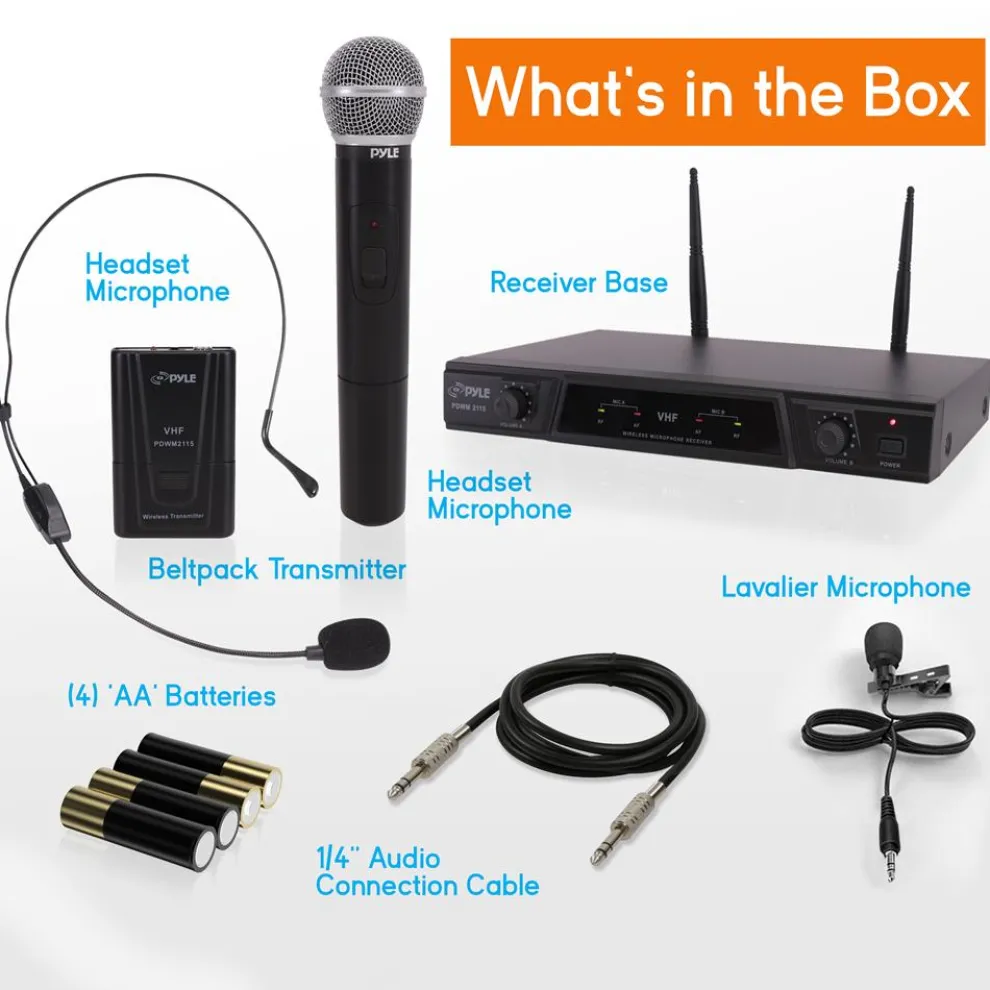

What’s in the Box:

• Receiver Base
• Wireless Handheld Microphone
• Headset Microphone
• Lavalier Microphone
• Beltpack Transmitter

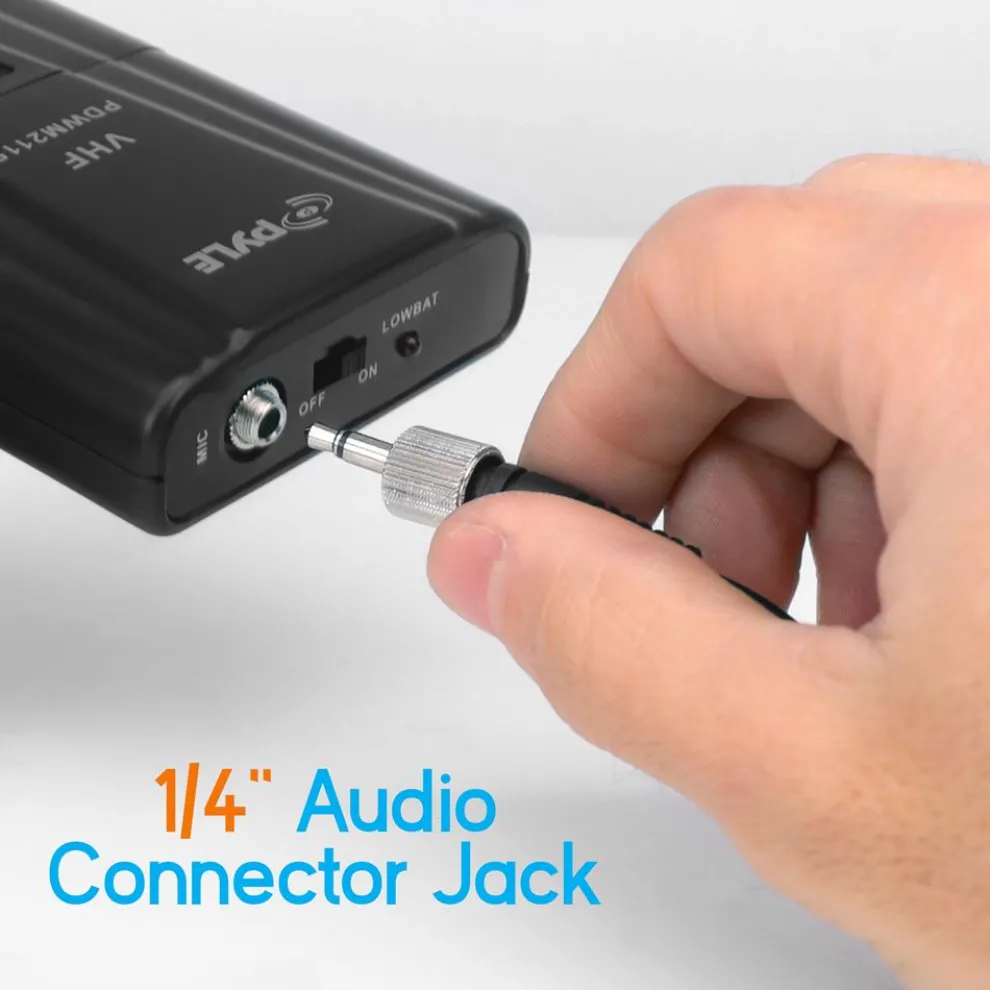

• 1/4” Audio Connection Cable

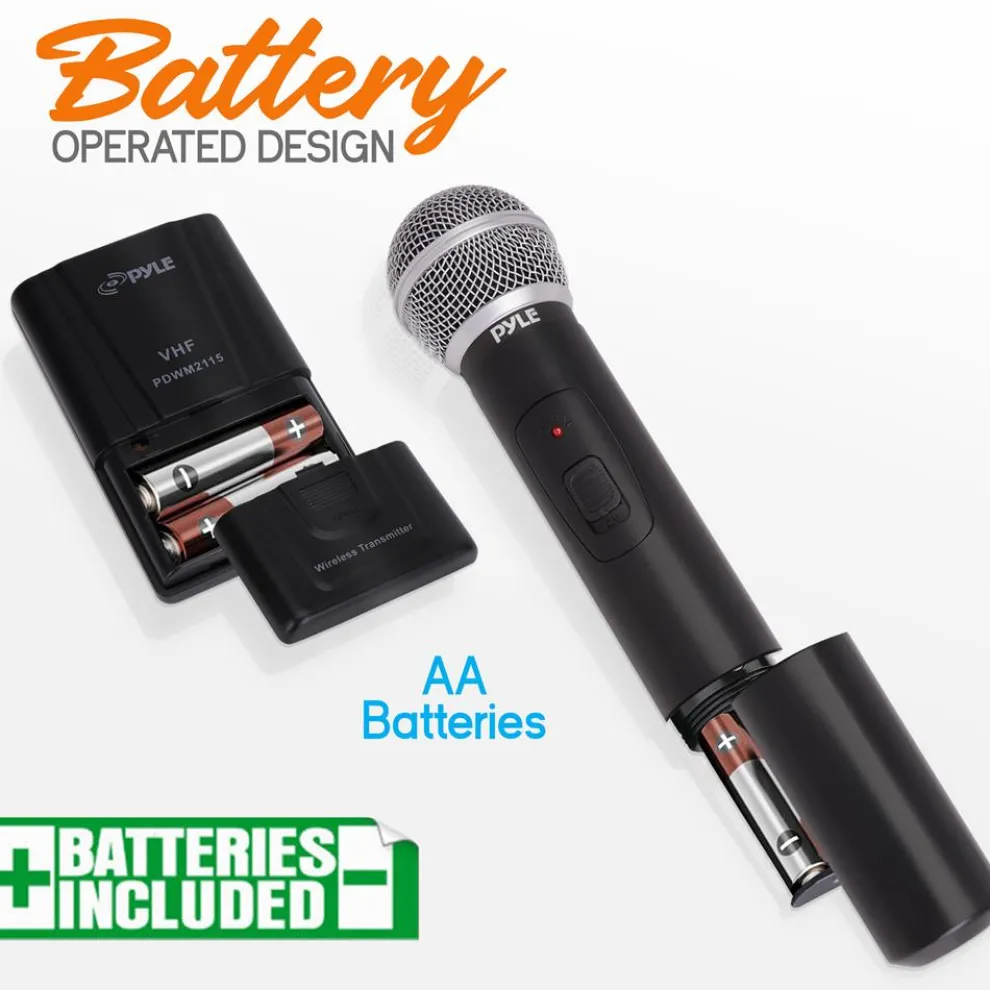

• (4) ‘AA’ Batteries

Transmitter Specifications:

• RF Power Output: >13dBm
• Harmonic at higher Degree: <60dB
• Modulation Degree: >30KHz
• Modulation Pattern: FM
• Power Current: <110mA
• Battery Type: DC 3V

Receiver Specifications:

• Sensitivity: -95dBm (S/N:12dB)
• S/N Ratio: >70dB
• RF Image Rejection:-75dB
• Neighboring Channel / Interference: >70dB
• Audio Dynamic Range:95dB
• T.H.D: <1%

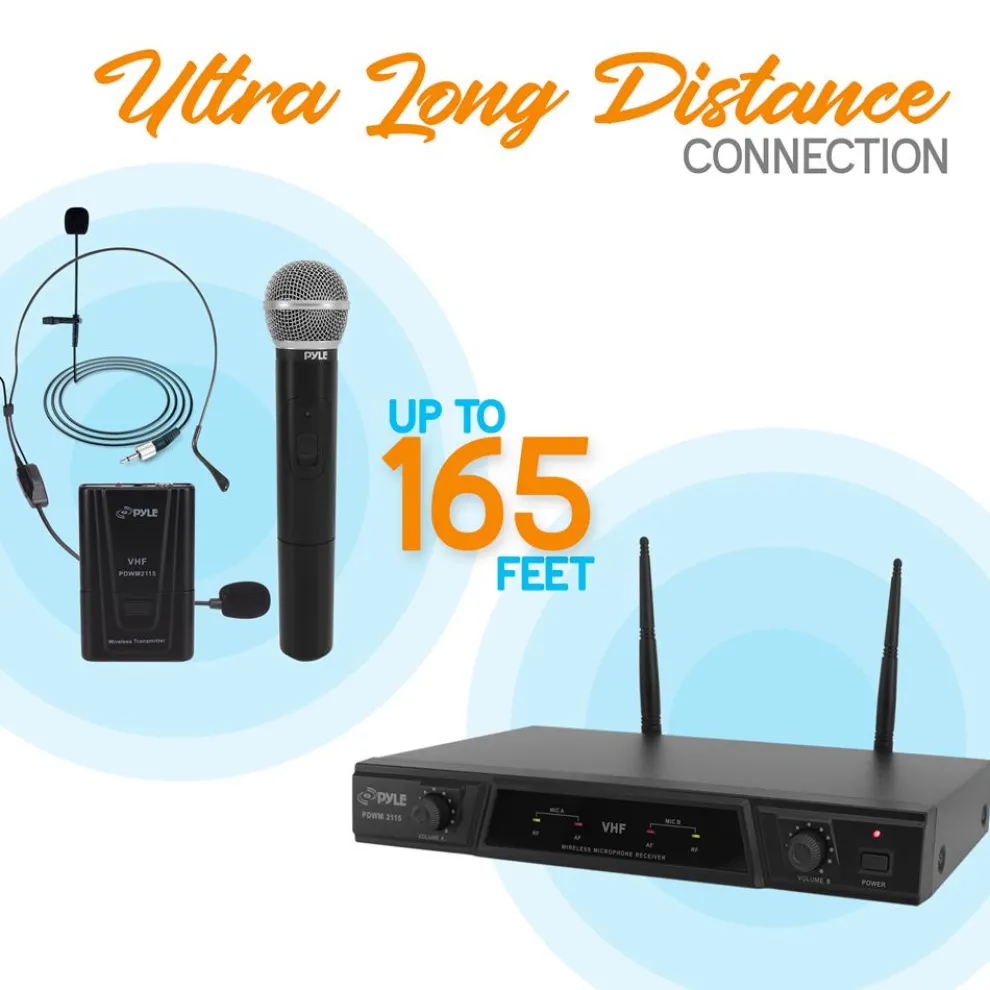

• Operating Range: >50 meters
• Power Source: AC 120V / 60Hz
• Dimensions: 12.7” x 8.5” x 1.9” -inches
